Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2002-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

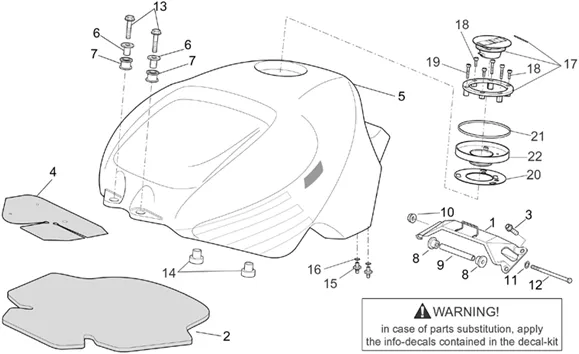

Chassis : 28.15 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/317/RSV_1000_Tuono_2002-2005_28.15.PNG)
1 |
AP8134370 - SUPPORT RESERVOIR; More informationQuantity required : 1 |
||||||
|
2 |
AP8117174-PANN. INSONORIS. RES. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
3 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 4 |
||||||
|
4 |
AP8117128 - PANN.THERMOFUGE RES.; More informationQuantity required : 1 |
||||||
|
5 |
AP8178253 - SERBATOIO BENZINA V.SILVER MIR More informationQuantity required : 1 |
||||||
|
5 |
AP8178257 - SERBATOIO BENZINA V.ROSSO FLUO More informationQuantity required : 1 |
||||||
|
5 |
AP8178711 - SERBATOIO BENZ.V.SILVER MIRROR More informationQuantity required : 1 |
||||||
|
5 |
AP8178712 - SERBATOIO BENZ.V.ROSSO FLUO More informationQuantity required : 1 |
||||||
|
5 |
Réservoir noir; |
||||||
|
5 |
AP8168218 - RESERVOIR ESSENCE PEINT ROUGE; More informationQuantity required : 1 |
||||||
|
5 |
AP8168512 - RESERVOIR ESSENCE PEINT GRIS; More informationQuantity required : 1 |
||||||
|
5 |
AP8168798 - SERBATOIO BENZINA VERN. More informationQuantity required : 1 |
||||||
|
5 |
AP8178242 - SERBATOIO BENZ.V.NERO DARKNESS More informationQuantity required : 1 |
||||||
|
5 |
AP8178710 - SERBATOIO BENZ.V.NERO DARKNESS More informationQuantity required : 1 |
||||||
|
6 |
AP8121421-" BUSH EN " " T " " " More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/7/img/71757.jpg)
7 |
RUBBER OEM PIAGGIO COMMON A LAGAMME-AP8144328 More informationQuantity required : 2 |
||||||
|
8 |
AP8123934-RUBBER More informationQuantity required : 2 |
||||||
|
9 |
AP8134419-BUSH ATTACHE TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
10 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
11 |
WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014 More informationQuantity required : 1 |
||||||
|
12 |
AP8150459-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
13 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/6/3/7/img/49637.jpg)
14 |
BUTEE RUBBER OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8144158 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/8/0/2/img/37802.jpg)
15 |
INSERT FUEL TANK OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-2B001203 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/4/img/71424.jpg)
16 |
O RING OF CANALISATION FUEL OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120965 More informationQuantity required : 2 |
||||||
|
17 |
AP8104288-CAP FUEL TANK More informationQuantity required : 1 |
||||||
|
17 |
AP8104551 - BOUCHON RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
17 |
Bouchon réservoir essence |
||||||
|
17 |
AP8104287-CAP FUEL TANK More informationQuantity required : 1 |
||||||
|
18 |
AP8150454-SCREW More informationQuantity required : 4 |
||||||
|
19 |
SCREW BTR (5X30) OEM PIAGGIO COMMON A LA RANGE-AP8150453 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/1/img/71421.jpg)
20 |
FUEL TANK GASKET "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, 1000 CAPONORD, RSV-2/MOTO-GUZZI 750 BREVA, DAYTONA, 1100 V11, SPORT -AP8120894- More informationQuantity required : 1 |
||||||
|
20 |
AP8144351-GASKET FUEL TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/0/img/71420.jpg)
21 |
GASKET OF BUSH OF CAP TANK OEM PIAGGIO APRILIA 750-900 SHIVER, 1000 CAPONORD, RSV-2/MOTO-GUZZI 750 BREVA, DAYTONA, 1100 V11, SPORT-AP8120893 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/6/img/71186.jpg)
22 |
CUVE DE CAP DE RESEVOIR FUEL OEM PIAGGIO APRILIA 1000 RSV-2, FALCO, FUTURA, TUONO, CAPONORD, 250 RS, 650 PEGASO-AP8102535 More informationQuantity required : 1 |
