Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2002-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

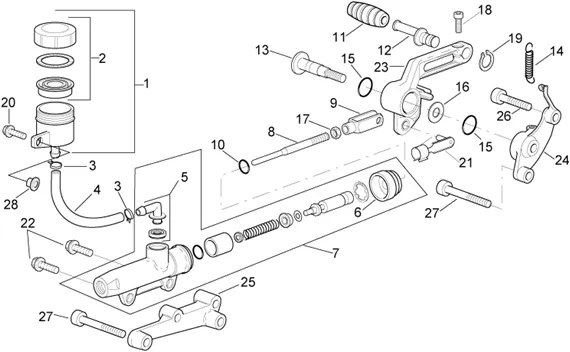

Chassis : 28.41 MAÎT.CYL. FREIN AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/317/RSV_1000_Tuono_2002-2005_28.41.PNG)
1 |
AP8133873-TANK OIL FRENI More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/0/6/img/71306.jpg)
2 |
CAP BOCAL DE BRAKE MASTER CYLINDER OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA/APRILIA 125 MX, RS, 650 PEGASO, 1000 RSN-2, 1200 CAPONORD, DORSODURO-AP8113553 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
3 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/6/img/41726.jpg)
4 |
HOSE OIL DE BOCAL OF BRAKE OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-890509 More informationQuantity required : 1 |
|||||||||
|
5 |
AP8133872-RACCORDO PUMP POSTERIORE More informationQuantity required : 1 |
|||||||||
|
6 |
SOUFFLET EN RUBBER ROD OF PUMP BRAKE REAR APRILIA/MOTO GUZZI-AP8113288 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/4/9/1/img/39491.jpg)
7 |
BRAKE MASTER CYLINDER REAR OEM PIAGGIO APRILIA 1000 RSV-2 1998 > 2008, TUONO V2 2002 > 2009, 600-650 PEGASO 1990 > 1996-852218 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/3/img/71453.jpg)
8 |
ROD OF BRAKE MASTER CYLINDER REAR OEM APRILIA 1000 RSV-2, TUONO V2-AP8121222 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/7/img/71167.jpg)
9 |
FOURCHETTE ROD OF CONTROL DE BRAKE MASTER CYLINDER REAR OEM PIAGGIO COMMON A ALA RANGE MOTO-AP8101968 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/7/img/71387.jpg)
10 |
O-RING MAITRE CYLINDER REAR (OR112) OEM PIAGGIO COMMON A LA RANGE-AP8120178 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
11 |
RUBBER BRAKE LEVER REAR OU SELECTEUR OEM PIAGGIO FOR MOTORCYCLE-GUZZI/APRILIA-AP8120912 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/2/img/71452.jpg)
12 |
ROD BRAKE LEVER REAR OEM PIAGGIO FOR MOTORCYCLE-GUZZI STELVIO 2024, 850-1200 NORGE, BREVA, 1200 SPORT/ROD SELECTEUR DE VITESSES RANGE MOTO APRILIA-AP8121221 More informationQuantity required : 1 |
|||||||||
|
13 |
REAR BRAKE PEDAL PIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -884033 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/9/9/img/71499.jpg)
14 |
SPRING PEDAL OF BRAKE OEM MOTO GUZZI V7, V9, V85-AP8121927 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/3/8/img/71738.jpg)
15 |
O-RING (11, 11X1, 78) OEM PIAGGIO COMMON A LA RANGE-AP8144007 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
16 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
17 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
18 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044 More informationQuantity required : 1 |
|||||||||
|
18 |
AP8152426 - VIS TCC More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/1/img/71891.jpg)
19 |
CLIPS/CIRCLIPS DIAMETRE 9MM OEM PIAGGIO COMMON A LA RANGE-AP8150462 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/9/7/img/69697.jpg)
20 |
SCREW FLANGE TH (5X0, 8 L. 28) OEM PIAGGIO COMMON A LA RANGE-855799 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/2/9/img/72129.jpg)
21 |
AGRAPHE/CLIP ROD OF MAITRE CYLINDER REAR OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8201301 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
22 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
|||||||||
|
23 |
AP8135925 - LEVIER DE FREIN AR; More informationQuantity required : 1 |
|||||||||
|
24 |
AP8134415-BRACKET MAN. BRAKE More informationQuantity required : 1 |
|||||||||
|
25 |
AP8134384-SUPP. PUMP BRAKE REAR. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/5/img/71875.jpg)
26 |
SCREW BTR (6X45) OEM PIAGGIO COMMON A LA RANGE-AP8150403 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/9/img/71849.jpg)
27 |
SCREW BTR (8X50) OEM PIAGGIO COMMON A LA RANGE-AP8150277 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
28 |
BUSH EN T INNER 5 MM OEM PIAGGIO COMMON A LA RANGE-AP8121795 More informationQuantity required : 1 |
|||||||||
