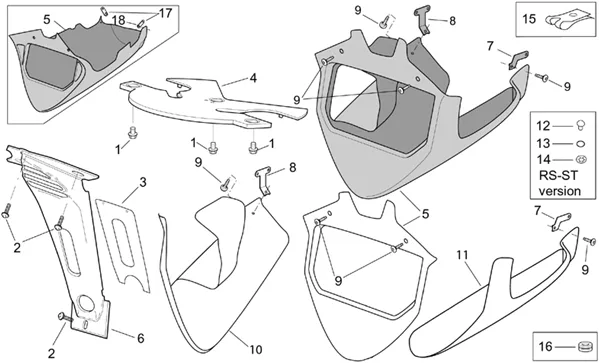

Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2002-2005 APRILIA

Chassis : 28.13 CARR.AV.- FERMETURES
Carr.av.- Fermetures
Search
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277

1
P2R reference P2R reference 71941
Maker reference Maker reference AP8152277

SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277

More information

Quantity required : 3

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

2
P2R reference P2R reference 71933
Maker reference Maker reference AP8152246

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

More information

Quantity required : 5

AP8117129 - PANN.THERM.SPOILER;

3
P2R reference P2R reference 46226
Maker reference Maker reference AP8117129

AP8117129-PANN. THERM. SPOILER

More information

Quantity required : 1

Fermeture inf. front. car., c.;

4
P2R reference P2R reference
Maker reference Maker reference AP8168064

Fermeture inf. front. car., c.;

Emb.carène, carb.;

5
P2R reference P2R reference
Maker reference Maker reference AP8168062

Emb.carène, carb.;

AP8168219 - BUTEE CARENAGE;

5
P2R reference P2R reference 53068
Maker reference Maker reference AP8168219

AP8168219 - BUTEE CARENAGE;

More information

Quantity required : 1

AP8179213 - PUNTALE CAR.CARB.V.TRASP.N/DEC

5
P2R reference P2R reference 54402
Maker reference Maker reference AP8179213

AP8179213 - PUNTALE CAR.CARB.V.TRASP.N/DEC

More information

Quantity required : 1

AP8168808 - PUNTALE CARB.RACING

5
P2R reference P2R reference 53392
Maker reference Maker reference AP8168808

AP8168808 - PUNTALE CARB.RACING

More information

Quantity required : 1

AP8168906 - PUNTALE CARENA

5
P2R reference P2R reference 53453
Maker reference Maker reference AP8168906

AP8168906 - PUNTALE CARENA

More information

Quantity required : 1

AP8178246 - PUNTALE V.GRIGIO CRO.ANOD.

5
P2R reference P2R reference 53908
Maker reference Maker reference AP8178246

AP8178246 - PUNTALE V.GRIGIO CRO.ANOD.

More information

Quantity required : 1

AP8148834 - SPOILER RADIATEUR NOIR;

6
P2R reference P2R reference 50458
Maker reference Maker reference AP8148834

AP8148834-SPOILER RADIATOR BLACK

More information

Quantity required : 1

AP8134894 - SUPPORT GAUCHE;

7
P2R reference P2R reference 49072
Maker reference Maker reference AP8134894

AP8134894-BRACKET LEFT

More information

Quantity required : 1

AP8134895 - SUPPORT DROITE;

8
P2R reference P2R reference 49073
Maker reference Maker reference AP8134895

AP8134895 - SUPPORT DROITE;

More information

Quantity required : 1

AP8152420 - VIS

9
P2R reference P2R reference 51009
Maker reference Maker reference AP8152420

AP8152420-SCREW

More information

Quantity required : 4

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

9
P2R reference P2R reference 71933
Maker reference Maker reference AP8152246

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

More information

Quantity required : 4

AP8178247 - PUNTALE DX V.GRIGIO CRO.ANOD.

10
P2R reference P2R reference 53909
Maker reference Maker reference AP8178247

AP8178247 - PUNTALE DX V.GRIGIO CRO.ANOD.

More information

Quantity required : 1

AP8168220 - EMB.CARENE DX;

10
P2R reference P2R reference 53069
Maker reference Maker reference AP8168220

AP8168220-EMB. FAIRING DX

More information

Quantity required : 1

AP8178248 - PUNTALE SX V.GRIGIO CRO.ANOD.

11
P2R reference P2R reference 53910
Maker reference Maker reference AP8178248

AP8178248 - PUNTALE SX V.GRIGIO CRO.ANOD.

More information

Quantity required : 1

RIVET MOUNTING FAIRING OEM PIAGGIO APRILIA 50-125 RS, TUONO, 1000 CAPONORD, RSV-2, ATLANTIC, SCARABEO-AP8144109

12
P2R reference P2R reference 71750
Maker reference Maker reference AP8144109

RIVET MOUNTING FAIRING OEM PIAGGIO APRILIA 50-125 RS, TUONO, 1000 CAPONORD, RSV-2, ATLANTIC, SCARABEO-AP8144109

More information

Quantity required : 8

RUBBER DE FAIRING OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8102504

13
P2R reference P2R reference 71181
Maker reference Maker reference AP8102504

RUBBER DE FAIRING OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8102504

More information

Quantity required : 8

WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450

14
P2R reference P2R reference 71888
Maker reference Maker reference AP8150450

WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450

More information

Quantity required : 8

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

15
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 2

RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030

16
P2R reference P2R reference 71384
Maker reference Maker reference AP8120030

RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030

More information

Quantity required : 1

AP8134541 - PLAQ.FIX.FLANC;

17
P2R reference P2R reference 48957
Maker reference Maker reference AP8134541

AP8134541-PLAQ. FIX. SIDE PANEL

More information

Quantity required : 1

RIVET PLASTIQUE FILETE (M6) OEM APRILIA COMMON A LA RANGE-AP8102544

18
P2R reference P2R reference 71187
Maker reference Maker reference AP8102544

RIVET PLASTIQUE FILETE (M6) OEM APRILIA COMMON A LA RANGE-AP8102544

More information

Quantity required : 2
