Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2002-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

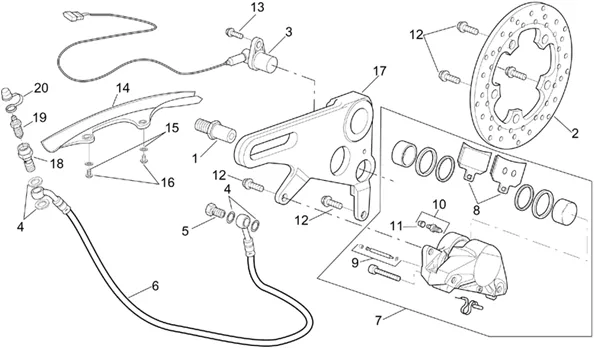

Chassis : 28.42 PINCE FREIN AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/317/RSV_1000_Tuono_2002-2005_28.42.PNG)
1 |
AP8121234-ROD BUTEE PLAQ. BRAKE More informationQuantity required : 1 |
||||||
|
2 |
AP8113612 - DISQUE FREIN ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/7/img/71567.jpg)
3 |
SENSOR OF INSTRUMENT CLUSTER OEM PIAGGIO MOTO-GUZZI 750 V7 RACER 2009 >, NEVADA, BREVA/APRILIA 500 SCARABEO 2003 > 2006, 500 ATLANTIC 2001 > 2004, 250 RS, 1000 RSV-2, RSV-4, TUONO, FALCO-AP8124528 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
4 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
5 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/0/4/2/img/46042.jpg)
6 |
HOSE/FLEXIBLE/HOSE OF BRAKE REAR OEM PIAGGIO APRILIA 1000 RSV-TUONO 2000 > 2003-AP8113873 More informationQuantity required : 1 |
||||||
|
7 |
Pince frein AR; |
||||||
|
7 |
AP8133900 - PINZA FRENO POSTERIORE P32 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/0/2/img/68002_20251023155917.jpg)
8 |
BRAKE PAD OEM PIAGGIO 125-250-500 X9 AV + AR, 400-500 BEVERLY AV/APRILIA 1000 RSV AR, 1000 TUONO AR (BREMBO)-647076 More informationQuantity required : 1 |
||||||
|
8 |
AP8133920 - PASTIGLIE FRENO 2172 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/2/1/img/71321.jpg)
9 |
SPINDLE + GOUPILLE BRAKE CALIPER REAR OEM APRILIA COMMON A LA RANGE-AP8113752 More informationQuantity required : 1 |
||||||
|
10 |
AP8113895-PURGE AIR More informationQuantity required : 1 |
||||||
|
11 |
AP8113070-CAPUCHON RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
12 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
13 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 1 |
||||||
|
14 |
AP8134443 - SUPP.TUYAU FREIN AR.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/6/img/71806.jpg)
15 |
WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMU A LA RANGE-AP8150013 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
16 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272 More informationQuantity required : 2 |
||||||
|
17 |
Plaq. fix pince frein; |
||||||
|
17 |
AP8134900 - PLAQ. FIX PINCE FREIN; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/0/0/7/img/46007.jpg)
18 |
AP8113762 - VIS PERCEE; More informationQuantity required : 1 |
||||||
|
19 |
AP8113761 - PURGE AIR; More informationQuantity required : 1 |
||||||
|
20 |
AP8113230-CAPUCHON RENIFLARD More informationQuantity required : 1 |
