Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2002-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

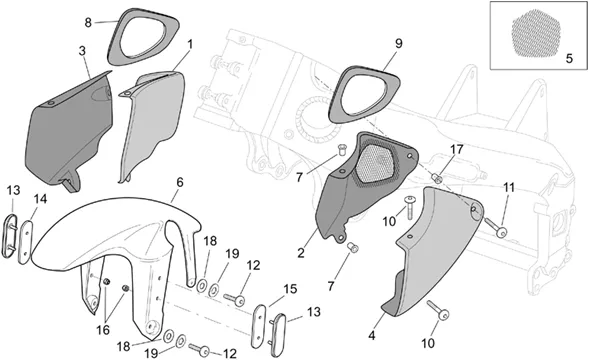

Chassis : 28.12 CARROSSERIE AV. - GARDE-BOUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/317/RSV_1000_Tuono_2002-2005_28.12.PNG)
1 |
Convoyeur D, c.; |
|||||||||
|
1 |
AP8168229-DUCT D More informationQuantity required : 1 |
|||||||||
|
1 |
AP8168908 - CONVOGLIATORE DX INT. More informationQuantity required : 1 |
|||||||||
|
1 |
AP8179040 - CONVOGLIATORE DX INT.CARBONIO More informationQuantity required : 1 |
|||||||||
|
2 |
Convoyeur G, c.; |
|||||||||
|
2 |
AP8168230 - CONVOYEUR G; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8168909 - CONVOGLIATORE SX INT. More informationQuantity required : 1 |
|||||||||
|
2 |
AP8179041 - CONVOGLIATORE SX INT.CARBONIO More informationQuantity required : 1 |
|||||||||
|
3 |
Convoyeur D, c.; |
|||||||||
|
3 |
AP8168231 - CONVOYEUR D; More informationQuantity required : 1 |
|||||||||
|
3 |
AP8179211 - CONVOGL.EST.DX CARB.V.TR.N/DEC More informationQuantity required : 1 |
|||||||||
|
3 |
Convoyeur D, c. |
|||||||||
|
3 |
AP8178244 - CONVOGLIATORE EST.DX V.GRIGIO More informationQuantity required : 1 |
|||||||||
|
3 |
AP8178434 - CONVOGLIATORE EST.DX CARB. More informationQuantity required : 1 |
|||||||||
|
4 |
AP8179212 - CONVOGL.EST.SX CARB.V.TR.N/DEC More informationQuantity required : 1 |
|||||||||
|
4 |
Convoyeur G, c.; |
|||||||||
|
4 |
AP8168232 - CONVOYEUR G; More informationQuantity required : 1 |
|||||||||
|
4 |
Convoyeur G, c. |
|||||||||
|
4 |
AP8178245 - CONVOGLIATORE EST.SX V.GRIGIO More informationQuantity required : 1 |
|||||||||
|
4 |
AP8178435 - CONVOGLIATORE EST.SX CARB. More informationQuantity required : 1 |
|||||||||
|
5 |
AP8168222 - GRILLE PRISE AIR; More informationQuantity required : 2 |
|||||||||
|
6 |
Garde-boue AV carb.; |
|||||||||
|
6 |
AP8156070 - PARAFANGO ANT.CARB.V. More informationQuantity required : 1 |
|||||||||
|
6 |
AP8156193 - PARAFANGO ANT.CARBONIO More informationQuantity required : 1 |
|||||||||
|
6 |
AP8156024 - GARDE-BOUE AV; More informationQuantity required : 1 |
|||||||||
|
6 |
Garde-boue AV carb.; |
|||||||||
|
6 |
AP8156043 - GARDE-BOUE AV; More informationQuantity required : 1 |
|||||||||
|
6 |
AP8156054 - GARDE-BOUE AV; More informationQuantity required : 1 |
|||||||||
|
6 |
AP8156057 - GARDE-BOUE AV; More informationQuantity required : 1 |
|||||||||
|
6 |
AP8156113 - PARAFANGO ANT.V.NERO DARKNESS More informationQuantity required : 1 |
|||||||||
|
6 |
AP8156115 - PARAFANGO ANT.V.SILVER MIRROR More informationQuantity required : 1 |
|||||||||
|
6 |
AP8156117 - PARAFANGO ANT.V.ROSSO FLUO More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
7 |
NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531 More informationQuantity required : 4 |
|||||||||
|
8 |
AP8144588-GASKET CANALISATION More informationQuantity required : 1 |
|||||||||
|
8 |
AP8144603 - JOINT More informationQuantity required : 1 |
|||||||||
|
9 |
AP8144589-GASKET More informationQuantity required : 1 |
|||||||||
|
9 |
AP8144604-GASKET CANALISATION GAU. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
10 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 4 |
|||||||||
|
10 |
AP8152418-SCREW More informationQuantity required : 4 |
|||||||||
|
11 |
AP8152423 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
12 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 4 |
|||||||||
|
12 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 4 |
|||||||||
|
12 |
AP8152416-SCREW More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/9/img/71569.jpg)
13 |
CATADIOPTRE AMBRE OEM PIAGGIO COMMON A LA RANGE-AP8124719 More informationQuantity required : 2 |
|||||||||
|
14 |
AP8148588 - SUPPORT CATAD.AV.D.; More informationQuantity required : 1 |
|||||||||
|
15 |
AP8148589-BRACKET CATAD. AV. G. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
16 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/9/0/img/56990.jpg)
17 |
SPACER (14X10X6. 6) OEM COMMON A LA RANGE PIAGGIO/APRILIA-AP8221017 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
18 |
WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/8/4/img/97084.jpg)
19 |
WASHER ELASTIC COURBE (5. 3X10X0. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150272 More informationQuantity required : 4 |
|||||||||
