Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2002-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

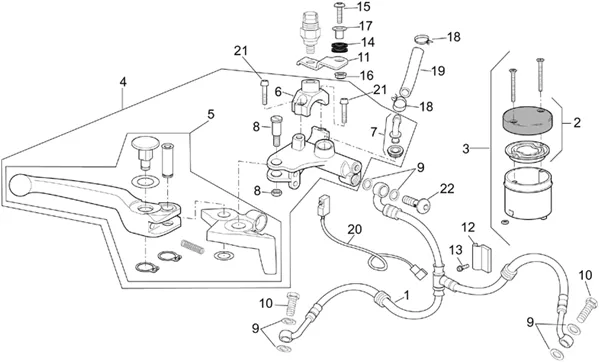

Chassis : 28.24 MAÎT. CYL. FREIN AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/317/RSV_1000_Tuono_2002-2005_28.24.PNG)
1 |
AP8133575 - TUBE FREIN AV; More informationQuantity required : 1 |
||||||
|
1 |
AP8133615 - TUBE FREIN AV; More informationQuantity required : 1 |
||||||
|
2 |
AP8113598-CAP RES. OIL FREINS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/0/1/img/71301.JPG)
3 |
BOCAL/TANK OF BRAKE FRONT OEM PIAGGIO APRILIA 1000 RSV, TUONO, FALCO, FUTURA, 750-1200 DORSODURO, 1200 CAPONORD-AP8113499 More informationQuantity required : 1 |
||||||
|
4 |
854600 - MATRE CYLINDRE More informationQuantity required : 1 |
||||||
|
4 |
AP8133620 - MA?T. CYL. FREIN AV; More informationQuantity required : 1 |
||||||
|
5 |
854601-LEVER DU BRAKE More informationQuantity required : 1 |
||||||
|
6 |
AP8104631 - BASE SPECCHIO RETROVISORE More informationQuantity required : 1 |
||||||
|
6 |
AP8168501-BASE MIRROR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/7/img/72197.jpg)
7 |
FITTING OF PUMP BRAKE REAR OEM APRILIA/MOTO-GUZZI COMMON A LA RANGE-AP8213057 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/9/7/6/img/140976.jpg)
8 |
SCREW OF MOUNTING LEVER BRAKE/CLUTCH OEM PIAGGIO APRILIA 1000 CAPONORD, RSV-2, TUONO V2, FUTURA-2B003040 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
9 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
10 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/0/7/7/img/49077.jpg)
11 |
BRACKET DE BRAKE MASTER CYLINDER FRONT OEM PIAGGIO APRILIA 750-1200 DORSODURO, 1000 TUONO, 1200 CAPONORD-AP8134899 More informationQuantity required : 1 |
||||||
|
12 |
AP8134438 - PLA. FIX. TUBE FREIN; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
13 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
14 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
15 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
16 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
17 |
BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
18 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/6/img/41726.jpg)
19 |
HOSE OIL DE BOCAL OF BRAKE OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-890509 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/6/2/img/47462.jpg)
20 |
CONTACTEUR/INTERRUPTEUR DE STOP OEM APRILIA 750 DORSODURO 2010 > 2013, DORSODURO 1200 2010 > 2016, 1000-1100 TUONO 2002 > 2016-AP8124288 More informationQuantity required : 1 |
||||||
|
21 |
AP8213299-SCREW CALOTTE More informationQuantity required : 2 |
||||||
|
22 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/5/2/img/71652.jpg)
22 |
SCREW/FITTING BANJO HOSE OF BRAKE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8133594 More informationQuantity required : 1 |
