Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2002-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

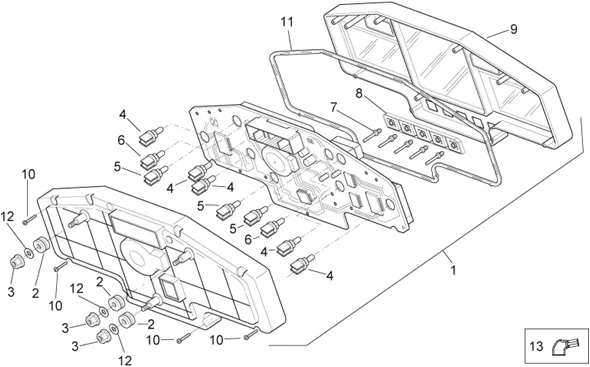

Chassis : 28.21 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/317/RSV_1000_Tuono_2002-2005_28.21.PNG)
1 |
AP8124990 - TABLEAU DE BORD; More informationQuantity required : 1 |
||||||
|
2 |
AP8112599 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
3 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 3 |
||||||
|
4 |
AP8124569-DOOR-AMPOULE COMPLETE More informationQuantity required : 5 |
||||||
|
5 |
AP8124570-DOOR-AMPOULE COMPLETE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/5/3/3/img/47533.jpg)
6 |
BULB HOLDER - DASHBOARD (12V 3W) "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2, FALCO -AP8124571 More informationQuantity required : 2 |
||||||
|
7 |
AP8124575 - PISTON TAB. BORD More informationQuantity required : 5 |
||||||
|
8 |
AP8124574 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
9 |
Couv. support tab.bord |
||||||
|
10 |
Vis |
||||||
|
11 |
AP8144415 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
12 |
WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014 More informationQuantity required : 3 |
||||||
|
13 |
856152-CAPUCHON ISOLANT More informationQuantity required : 1 |
