Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2002-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

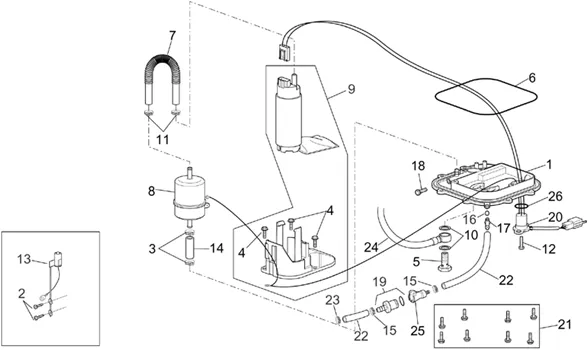

Chassis : 28.32 POMPE ESSENCE RACING
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/317/RSV_1000_Tuono_2002-2005_28.32.PNG)
1 |
AP8134750-FLANGE PUMP FUEL More informationQuantity required : 1 |
||||||
|
2 |
Vis taraud |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/8/img/71198.jpg)
3 |
CLAMP CLIC (13. 5X6) OEM PIAGGIO COMMON A LA RANGE-AP8102765 More informationQuantity required : 2 |
||||||
|
4 |
Vis |
||||||
|
5 |
AP8106443-SCREW PERCEE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/3/5/0/8/img/53508.jpg)
6 |
GASKET FOR FUEL GAUGE COVER "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO, RST FUTURA -AP8176032- More informationQuantity required : 1 |
||||||
|
7 |
AP8144226-FUEL HOSE * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/7/6/img/45276.jpg)
8 |
FUEL FILTER OEM PIAGGIO APRILIA 1000 RSV-2, FALCO, TUONO, FUTURA, CAPONORD-AP8102971 More informationQuantity required : 1 |
||||||
|
9 |
AP8176078 - KIT POMPA BENZINA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/5/3/4/img/45534.jpg)
10 |
GASKET FOR FUEL PUMP HOSE (18X12,2X1,5) "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2, FALCO, FUTURA -AP8106444 More informationQuantity required : 4 |
||||||
|
11 |
890435-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
12 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
|
13 |
AP8127540 - SENSORE LIVELLO More informationQuantity required : 1 |
||||||
|
14 |
AP8144476-FUEL HOSE * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/7/img/71197.jpg)
15 |
CLAMP CLIC (13X6) OEM PIAGGIO COMMON A LA RANGE-AP8102764 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/2/img/50962.jpg)
16 |
WASHER PLATE (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-AP8152184 More informationQuantity required : 2 |
||||||
|
17 |
AP8102626 - RACCORD A DEUX VOIES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
18 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 1 |
||||||
|
19 |
AP8102873-FITTING More informationQuantity required : 1 |
||||||
|
20 |
AP8127321 - CABLAGE POMPE ESSENCE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
21 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/4/img/71744.jpg)
22 |
FUEL HOSE (6X13) "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD 2001>2007, FUTURA, RSV-2 1998>2008, TUONO V2 2002>2009/MOTO-GUZZI 750-1100 BREVA 2003>2009,1100 GRISO 2005>2008 -AP8144069 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/1/img/71171.jpg)
23 |
AP8102239-CLAMP CLIC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/0/1/5/img/40015.jpg)
24 |
FUEL DISCHARGE PIPE "PIAGGIO GENUINE PARTS" APRILIA 1000 RSV-2 1998>2008, TUONO V2 2002>2009, FALCO 2000>2003 -856075- More informationQuantity required : 1 |
||||||
|
25 |
AP8102829 - RACCORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/7/4/0/img/49740.jpg)
26 |
AP8144475 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
