Vehicle Exploded View - APRILIA TUONO 1000 RSV 1000 Tuono 2002-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

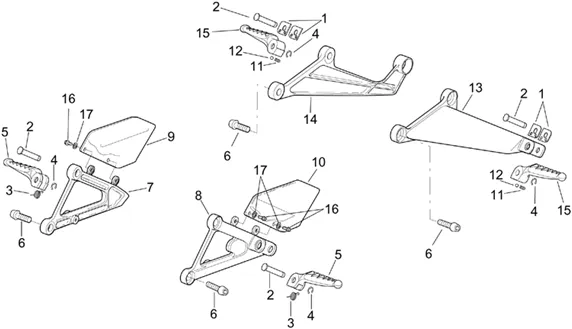

Chassis : 28.04 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/317/RSV_1000_Tuono_2002-2005_28.04.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/0/3/img/71703.jpg)
1 |
PLATE FDC PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE-AP8134451 More informationQuantity required : 4 |
||||||
2 |
Pivot repose-pieds |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/4/img/71454.jpg)
3 |
SPRING RETOUR FOOTREST PILOTE OEM APRILIA 660-750-900-1000-1100 SHIVER, RSV, TUONO-AP8121224 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/4/img/71404.jpg)
4 |
CIRCLIPS OF REST FOOT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120573 More informationQuantity required : 4 |
||||||
|
5 |
R-pied pilote-paire; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
6 |
SCREW FLANGE TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152288 More informationQuantity required : 8 |
||||||
|
6 |
Vis tcc M8x35 P.F.20 |
||||||
|
7 |
AP8134912 - SUP.PL.PILOTE DTE; More informationQuantity required : 1 |
||||||
|
7 |
AP8146336 - PEDANA DX PILOTA COMPLETA More informationQuantity required : 1 |
||||||
|
8 |
AP8134913 - SUP.PL.PILOTE GCHE; More informationQuantity required : 1 |
||||||
|
8 |
AP8146337 - PEDANA SX PILOTA COMPLETA More informationQuantity required : 1 |
||||||
|
9 |
AP8146300 - PROT.REP.-P.PIL. DR.; More informationQuantity required : 1 |
||||||
|
9 |
Prot.marchep.pilote D carb.; |
||||||
|
9 |
AP8146709 - PROT.REP.-P.PIL. DR.; More informationQuantity required : 1 |
||||||
|
9 |
AP8146766 - PROTEZIONE PED.DX PILOTA CARB. More informationQuantity required : 1 |
||||||
|
9 |
AP8179036 - PROTEZIONE PED.DX PILOTA CARB. More informationQuantity required : 1 |
||||||
|
10 |
AP8146710 - PROT.REP.-P.PIL. G.; More informationQuantity required : 1 |
||||||
|
10 |
AP8146767 - PROTEZIONE PED.SX PILOTA CARB. More informationQuantity required : 1 |
||||||
|
10 |
AP8179037 - PROTEZIONE PED.SX PILOTA CARB. More informationQuantity required : 1 |
||||||
|
10 |
AP8146301-PROT. REP.-P. PIL. G. More informationQuantity required : 1 |
||||||
|
10 |
Prot.marchep.pilote G carb.; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
11 |
SPRING DE MAINTIEN FOOTREST OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121133 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/3/img/71163.jpg)
12 |
BILLE BLOCAGE FOOTREST OEM PIAGGIO APRILIA DORSODURO 750-900-1200, RS 50-125, RSV-4 1000, TUONO 1000/MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE-AP8101861 More informationQuantity required : 2 |
||||||
|
13 |
AP8146385-PEDANA SX PASSEGGERO COMPLETA More informationQuantity required : 1 |
||||||
|
13 |
AP8134914 - SUPPORT R-P. G PASS.; More informationQuantity required : 1 |
||||||
|
14 |
AP8146384-PEDANA DX PASSEGGERO COMPLETA More informationQuantity required : 1 |
||||||
|
14 |
PEDANA DX PASSEGGERO COMPLETA |
||||||
|
15 |
AP8146466 - R-PIED PASS.-PAIRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
16 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 4 |
||||||
|
16 |
959614-SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
17 |
WASHER ELASTIC COURBE (6X12) OEM PIAGGIO COMMON A LA RANGE-658830 More informationQuantity required : 4 |
