Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Up Date 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

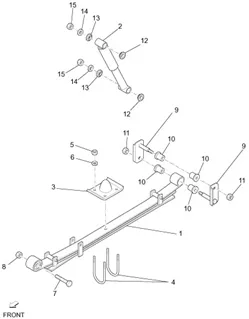

Suspensions - roues : 04.10 SUSPENSION ARRIÈRE - AMORTISSEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/700/Porter_Maxxi_Up_Date_2009_04.10.PNG)
1 |
SPRING A LAME OEM PIAGGIO PORTER MAXXI 2002 > 2020-B006164 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/5/3/6/img/122536.jpg)
2 |
REAR SHOCK ABSORBER OEM PIAGGIO PORTER MAXXI 2002 > 2020-B000032 More informationQuantity required : 2 |
||||||
|
3 |
B000068 BUFFER SPRING ARR. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/0/5/0/img/118050.jpg)
4 |
FLANGE LAMES DE RESSORTS OEM PIAGGIO PORTER MAXXI 2020 <-B000067 More informationQuantity required : 4 |
||||||
|
5 |
B000702 NUT More informationQuantity required : 8 |
||||||
|
6 |
003062-WASHER S00306200 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/5/7/4/img/112574.jpg)
7 |
SCREW TH (12X90) OEM PIAGGIO COMMON A LA RANGE-B007665 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/7/img/66047.jpg)
8 |
NUT FLANGE (12X1. 25) OEM PIAGGIO COMMON A LA RANGE-261319 More informationQuantity required : 2 |
||||||
|
9 |
B004017 BRACKET ARR. More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/9/1/0/img/112910.jpg)
10 |
RUBBER MOUNT DE LAME SUSPENSION REAR OEM PIAGGIO PORTER 2020 <-261219 More informationQuantity required : 8 |
||||||
|
11 |
ECROU |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/7/0/3/img/110703.jpg)
12 |
WASHER PLATE REAR SHOCK ABSORBER OEM PIAGGIO PORTER 2020 <-D9004209144 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/3/1/img/110331.jpg)
13 |
WASHER REAR SHOCK ABSORBER OEM PIAGGIO PORTER 2020 <-D9004209143 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/2/8/img/110228.jpg)
14 |
WASHER GROWER D12 OEM PIAGGIO COMMON A LA RANGE-D9451101200 More informationQuantity required : 4 |
||||||
|
15 |
ECROU |
