Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Up Date 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

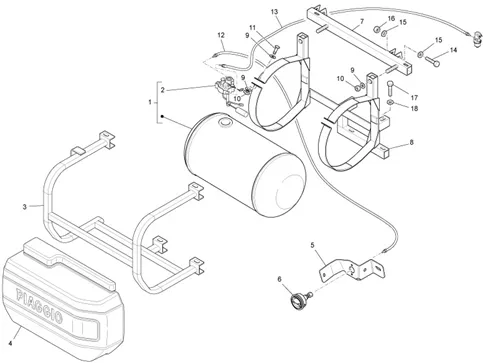

Châssis - parties plastiques - carrosseries : 02.49 RÉSERVOIR CARBURANT GPL (PICK)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/700/Porter_Maxxi_Up_Date_2009_02.49.PNG)
1 |
661147 - RESERVOIRE More informationQuantity required : 1 |
||||||
|
2 |
661149 JAUGE GAS More informationQuantity required : 1 |
||||||
|
3 |
PROTECTOR DE TANK GPL OEM PIAGGIO PORTER GPL MAXXI PICK 2008 > 2020-661142 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/5/0/8/img/122508.jpg)
4 |
PROTECTOR/COVER DE TANK OEM PIAGGIO PORTER MAXXI-661143 More informationQuantity required : 1 |
||||||
|
5 |
661144 BRACKET More informationQuantity required : 1 |
||||||
|
6 |
661150 PRISE More informationQuantity required : 1 |
||||||
|
7 |
661145 TRAVERSE More informationQuantity required : 1 |
||||||
|
8 |
661146 BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
9 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
10 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/2/img/65382.jpg)
11 |
SCREW TH (10X45) OEM PIAGGIO COMMON A TOUTE LA RANGE-015578 More informationQuantity required : 2 |
||||||
|
12 |
661151 HOSE More informationQuantity required : 1 |
||||||
|
13 |
661152 HOSE More informationQuantity required : 1 |
||||||
|
14 |
661161 - VIS More informationQuantity required : 2 |
||||||
|
15 |
661159 PLATE More informationQuantity required : 4 |
||||||
|
16 |
661162 NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/1/img/65651.jpg)
17 |
SCREW TH (10X30) OEM PIAGGIOCOMMUN A LA RANGE-031157 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/3/2/img/111132.jpg)
18 |
WASHER PLATE (10. 5X38X3) OEM PIAGGIO COMMON A LA RANGE-567427 More informationQuantity required : 1 |
