Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Up Date 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

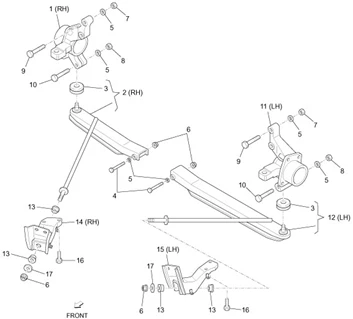

Suspensions - roues : 04.01 BRAS OSCILLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/700/Porter_Maxxi_Up_Date_2009_04.01.PNG)
1 |
B000102 ARTICULATION DE STEERING RIGHT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/4/7/9/img/121479.jpg)
2 |
ARM DE SUSPENSION FRONT RIGHT OEM PIAGGIO PORTER 2020 <-B0075546 More informationQuantity required : 1 |
|||||||||
|
3 |
4334587507000 PROTECTOR-POUSSIER More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/5/7/4/img/112574.jpg)
4 |
SCREW TH (12X90) OEM PIAGGIO COMMON A LA RANGE-B007665 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/0/3/img/110303.jpg)
5 |
D9451201200 - RONDELLE More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/7/5/img/110475.jpg)
6 |
NUT FLANGE (12X1, 25) OEM PIAGGIO COMMON A LA RANGE-264878 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/4/7/img/110047.jpg)
7 |
NUT (M12) OEM PIAGGIO COMMON A LA RANGE-D9411551200 More informationQuantity required : 4 |
|||||||||
|
8 |
ECROU |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/1/6/7/img/112167.jpg)
9 |
SCREW TH (12X55) OEM PIAGGIO COMMON A LA RANGE-1E003312 More informationQuantity required : 4 |
|||||||||
|
10 |
BOULON |
|||||||||
|
11 |
B000101 - ARTICULATION DE DIRECTION GAUCHE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/4/7/7/img/121477.jpg)
12 |
ARM DE SUSPENSION FRONT LEFT OEM PIAGGIO PORTER 2020 <-B0075556 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/8/5/0/img/113850.jpg)
13 |
BUFFER/RUBBER MOUNT TIRANT DE ARM SUSPENSION FRONT OEM PIAGGIO PORTER 1998 > 2020-4867487Z010006 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/2/7/5/img/121275.jpg)
14 |
BRACKET MONTANT RIGHT HUB FRONT OEM PORTER 2020 <-4807387Z01000 More informationQuantity required : 1 |
|||||||||
|
15 |
4807487Z02000 BRACKET ENGINE * More informationQuantity required : 1 |
|||||||||
|
16 |
B005057 BOLT More informationQuantity required : 8 |
|||||||||
|
17 |
RONDELLE |
|||||||||
