Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Up Date 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

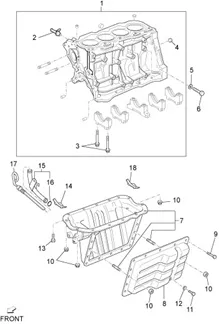

Moteur : 01.08 BLOC CYLINDRES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/700/Porter_Maxxi_Up_Date_2009_01.08.PNG)
1 |
1140187152000 - BLOC MOTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/8/7/6/img/118876.jpg)
2 |
FITTING ON BLOC CYLINDER OEM PIAGGIO PORTER FUEL 1998 > 2010-9004405217000 More informationQuantity required : 1 |
||||||
|
3 |
9004119588000 BOLT More informationQuantity required : 10 |
||||||
|
4 |
9004344013000 - BOUCHON More informationQuantity required : 1 |
||||||
|
5 |
9004430263000 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/0/4/img/113404.jpg)
6 |
9004341041000 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/9/1/2/img/122912.jpg)
7 |
1211187109000 - CUVETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/2/1/7/img/122217.jpg)
8 |
CASING OIL OEM PIAGGIO PORTER 1998 < 2009 1300CC-1210287101000 More informationQuantity required : 1 |
||||||
|
9 |
9004119681000 BOLT More informationQuantity required : 14 |
||||||
|
10 |
261323 NUT More informationQuantity required : 6 |
||||||
|
11 |
9004341041000 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/9/9/img/113399.jpg)
12 |
GASKET CAP DE VIDANGE OEM PIAGGIO PORTER 1300CC 1998 > 2010-9004430281000 More informationQuantity required : 1 |
||||||
|
13 |
9161160620000 BOLT More informationQuantity required : 11 |
||||||
|
14 |
1215187103000 SERIE GASKET More informationQuantity required : 1 |
||||||
|
15 |
1140987501000 - GUIDE More informationQuantity required : 1 |
||||||
|
16 |
JOINT |
||||||
|
17 |
1536187501000 - INDIC HUILE More informationQuantity required : 1 |
||||||
|
18 |
1215287102000 GASKET More informationQuantity required : 1 |
