Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Up Date 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

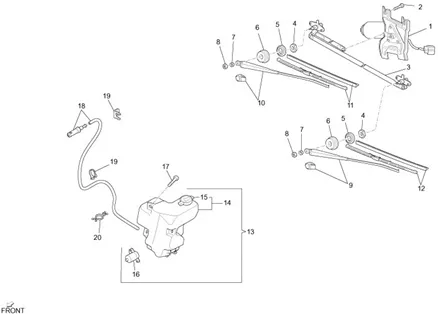

Installation électrique : 06.16 ESSUIE-GLACES AVANT ET ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/700/Porter_Maxxi_Up_Date_2009_06.16.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/5/5/9/img/121559.jpg)
1 |
ENGINE ESSUIE GLACE OEM PIAGGIO PORTER UP-DATE 2009 > 2010-B004550 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
2 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/2/2/6/img/120226.jpg)
3 |
MECANISME ESSUIE GLACE FRONT OEM PIAGGIO PORTER 2010 > 2020-615895 More informationQuantity required : 1 |
||||||
4 |
645436 NUT More informationQuantity required : 2 |
||||||
|
5 |
645435 GASKET More informationQuantity required : 2 |
||||||
|
6 |
645434 WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/9/img/63839.jpg)
7 |
WASHER ELASTIC (8. 4X15X0. 5) OEM PIAGGIO COMMON A LA RANGE-006968 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/3/5/img/114035.jpg)
8 |
NUT BORGNE (M8) OEM PIAGGIO COMMON A LA RANGE-658842 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/7/5/9/img/117759.jpg)
9 |
ARM ESSUIE GLACE LEFT (417) OEM PIAGGIO PORTER 1998 > 2020-660704 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/9/4/4/img/117944.jpg)
10 |
ARM ESSUIE GLACE RIGHT (441, 5) OEM PIAGGIO PORTER 2020 <-660705 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/1/6/img/116416.jpg)
11 |
BALAI ESSUIE GLACE LEFT OEM PIAGGIO PORTER 2010 > 2020-615897 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/0/2/img/116402.jpg)
12 |
BALAI ESSUIE GLACE RIGHT OEM PIAGGIO PORTER 2010 >-615902 More informationQuantity required : 1 |
||||||
|
13 |
8508087Z01000 LAVE-GLACE More informationQuantity required : 1 |
||||||
|
14 |
8533087Z01000 TANK More informationQuantity required : 1 |
||||||
|
15 |
8533287Z01000 CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/8/9/0/img/118890.jpg)
16 |
PUMP LAVE GLACE OEM PIAGGIO PORTER, CARGO 2015 <-8531087Z02000 More informationQuantity required : 1 |
||||||
|
17 |
BOULON |
||||||
|
18 |
611873 - SPRUZZATORE CO More informationQuantity required : 1 |
||||||
|
19 |
COLLIER |
||||||
|
20 |
COLLIER |
