Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Up Date 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

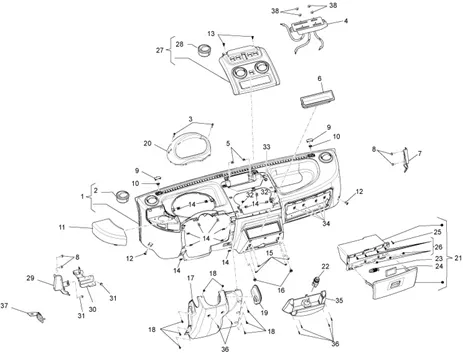

Guidon/direction : 03.02 GROUPE INSTRUMENTS - CRUSCOTTO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/700/Porter_Maxxi_Up_Date_2009_03.02.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/0/1/0/img/121010.jpg)
1 |
PANEL DE EDGE OEM PIAGGIO PORTER 2010 > 2020-B005907 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/3/6/7/img/115367.jpg)
2 |
DIFFUSEUR AIR HABITACLE OEM PIAGGIO PORTER 2010 > 2020-613323 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/7/8/0/img/109780.jpg)
3 |
SCREW CRUCIFORME (4. 8X38) TARAUD OEM PIAGGIO COMMON A LA RANGE-614772 More informationQuantity required : 2 |
||||||
4 |
B000980 ENSEMBLE CDES CHAUFF More informationQuantity required : 1 |
||||||
|
5 |
9004183025000 - ECROU More informationQuantity required : 3 |
||||||
|
6 |
613276 DOOR-OBJETS More informationQuantity required : 1 |
||||||
|
7 |
613858 CALIPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/4/7/img/151147.JPG)
8 |
SCREW A SIX PANS WITH DOUBLE WASHER M6X16-CM288916 More informationQuantity required : 8 |
||||||
|
9 |
613813 CAP More informationQuantity required : 2 |
||||||
|
10 |
BOULON |
||||||
|
11 |
614794 COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
12 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/3/4/img/111834.jpg)
13 |
SCREW TORX DE PANEL DE EDGE OEM PIAGGIO PORTER 2020 <-B004853 More informationQuantity required : 2 |
||||||
|
14 |
9004183025000 - ECROU More informationQuantity required : 18 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/1/img/72921.jpg)
15 |
NUT SHEET METAL (3. 5 PARKER) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM017403 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/5/9/img/110159.jpg)
16 |
SCREW TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-9004119537000 More informationQuantity required : 2 |
||||||
|
17 |
B000928 - COUVERTURE More informationQuantity required : 1 |
||||||
|
17 |
B005909 COVER More informationQuantity required : 1 |
||||||
|
18 |
SCREW TORX DE PANEL DE EDGE OEM PIAGGIO PORTER 2020 <-B004853 More informationQuantity required : 7 |
||||||
|
19 |
1E001524 COVER More informationQuantity required : 1 |
||||||
|
20 |
B005148 - GR INSTRUMENT COMPT More informationQuantity required : 1 |
||||||
|
21 |
TIROIR COMPLETE DOOR OBJET OEM PIAGGIO PORTER 2010 > 2020-B005363 More informationQuantity required : 1 |
||||||
|
22 |
565429 ALLUME CIGARE More informationQuantity required : 1 |
||||||
|
23 |
644300 BUTTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/0/4/img/111504.jpg)
24 |
SPRING BOX A GANT OEM PIAGGIO PORTER 2020 <-5552587Z01000 More informationQuantity required : 1 |
||||||
|
25 |
B000973 BUFFER More informationQuantity required : 2 |
||||||
|
26 |
9354054012000 SCREW More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/5/img/151195.jpg)
27 |
PANEL DE CONTROL ON PANEL DE EDGE OEM PIAGGIO PORTER 2009 > 2020-1E002505 More informationQuantity required : 1 |
||||||
|
28 |
DIFFUSEUR AIR HABITACLE OEM PIAGGIO PORTER 2010 > 2020-613323 More informationQuantity required : 2 |
||||||
|
29 |
B000990 BRACKET More informationQuantity required : 1 |
||||||
|
30 |
B000987 - EQUERRE More informationQuantity required : 1 |
||||||
|
31 |
BOULON |
||||||
|
32 |
SCREW TORX DE PANEL DE EDGE OEM PIAGGIO PORTER 2020 <-B004853 More informationQuantity required : 2 |
||||||
|
33 |
BOULON |
||||||
|
34 |
9004183025000 - ECROU More informationQuantity required : 6 |
||||||
|
35 |
613326 CENDRIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/0/img/65400.jpg)
36 |
SCREW PARKER (3. 5X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015859 More informationQuantity required : 4 |
||||||
|
37 |
B004583 BRACKET INTERRUPTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/9/8/2/img/109982.jpg)
38 |
BUTTON CONTROL DE CHAUFFAGE OEM PIAGGIO PORTER, CARGO 2004 > 2017-613678 More informationQuantity required : 4 |
