Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Up Date 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

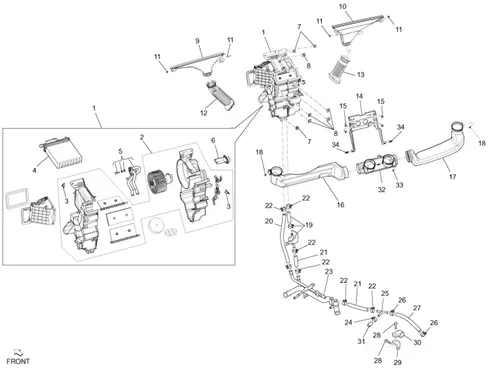

Châssis - parties plastiques - carrosseries : 02.57 SYSTÈME DE CHAUFFAGE - AIR CONDITIONNÉ
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/700/Porter_Maxxi_Up_Date_2009_02.57.PNG)
1 |
B004244 - CHAUFFAGE CPLT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/3/2/7/img/123327.jpg)
2 |
VENTILATEUR COMPLETE DE CHAUFFAGE OEM PIAGGIO PORTER 2011 > 2020-493929 More informationQuantity required : 1 |
||||||
|
3 |
493933 CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/0/2/4/img/122024.jpg)
4 |
RADIATOR DE CHAUFFAGE OEM PIAGGIO PORTER-493930 More informationQuantity required : 1 |
||||||
|
5 |
493951 - TUBE More informationQuantity required : 1 |
||||||
|
6 |
493913 RESISTANCE More informationQuantity required : 1 |
||||||
|
7 |
9004119260000 BOLT More informationQuantity required : 3 |
||||||
|
8 |
ECROU |
||||||
|
9 |
5509287Z02000 DIFFUSEUR AIR More informationQuantity required : 1 |
||||||
|
10 |
5509187Z02000 DIFFUSEUR AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/3/4/img/111834.jpg)
11 |
SCREW TORX DE PANEL DE EDGE OEM PIAGGIO PORTER 2020 <-B004853 More informationQuantity required : 3 |
||||||
|
12 |
615100 TUBE More informationQuantity required : 1 |
||||||
|
13 |
8723287Z02000 TUBE More informationQuantity required : 1 |
||||||
|
14 |
612279 CALIPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/4/7/img/151147.JPG)
15 |
SCREW A SIX PANS WITH DOUBLE WASHER M6X16-CM288916 More informationQuantity required : 16 |
||||||
|
16 |
B000513 MANIFOLD A AIR More informationQuantity required : 1 |
||||||
|
17 |
614797 TUBE OIL More informationQuantity required : 1 |
||||||
|
18 |
SCREW TORX DE PANEL DE EDGE OEM PIAGGIO PORTER 2020 <-B004853 More informationQuantity required : 2 |
||||||
|
19 |
645575 - SOUPAPE EAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/8/8/img/114088.jpg)
20 |
HOSE WATER OEM PIAGGIO PORTER 2015 <-645553 More informationQuantity required : 1 |
||||||
|
21 |
645552 - TUYAU More informationQuantity required : 2 |
||||||
|
22 |
9004467361000 CLAMP More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/0/4/9/img/122049.jpg)
23 |
FITTING/HOSE COOLING OEM PIAGGIO PORTER-1650787Z07000 More informationQuantity required : 1 |
||||||
|
24 |
264545 - COLLIER More informationQuantity required : 1 |
||||||
|
25 |
9004413099000 - RACCORD More informationQuantity required : 1 |
||||||
|
26 |
9004467360000 CLAMP More informationQuantity required : 2 |
||||||
|
27 |
8724587Z07000 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/8/img/151198.jpg)
28 |
BOLT TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-CM287314 More informationQuantity required : 2 |
||||||
|
29 |
5375787Z04000 - SUPPORT More informationQuantity required : 1 |
||||||
|
30 |
644286 CLAMP More informationQuantity required : 1 |
||||||
|
31 |
B004971 CAP More informationQuantity required : 1 |
||||||
|
32 |
614826 DIFFUSEUR AIR More informationQuantity required : 1 |
||||||
|
33 |
SCREW TORX DE PANEL DE EDGE OEM PIAGGIO PORTER 2020 <-B004853 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
34 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
