Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Up Date 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

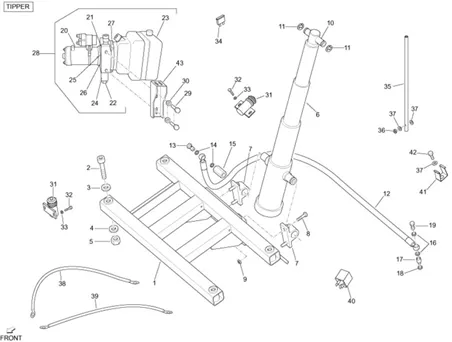

Châssis - parties plastiques - carrosseries : 02.22 SYSTÈME DE BASCULEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/700/Porter_Maxxi_Up_Date_2009_02.22.PNG)
1 |
B000344 BRACKET More informationQuantity required : 1 |
||||||
|
2 |
B000704 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
3 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
4 |
WASHER PLATE (10. 3X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-178790 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/6/img/65376.jpg)
5 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-015249 More informationQuantity required : 1 |
||||||
|
6 |
VERIN HYDRAULIQUE DE BENNE OEM PIAGGIO PORTER MAXXI 2002 > 2020-B023563 More informationQuantity required : 1 |
||||||
|
7 |
B000226 - SUPPORT More informationQuantity required : 2 |
||||||
|
8 |
SCREW FLANGE TH (12X35) OEM PIAGGIO COMMON A LA RANGE-848341 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/8/7/img/113387.jpg)
9 |
NUT AUTOBLOQUANT/NYLSTOP (M12X125) OEM PIAGGIO COMMON A LA RANGE-261318 More informationQuantity required : 2 |
||||||
|
10 |
B000294 PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/9/3/6/img/110936.jpg)
11 |
CLIPS/CIRCLIPS OEM PIAGGIO PORTER-B000717 More informationQuantity required : 2 |
||||||
|
12 |
B000318 HOSE OIL More informationQuantity required : 1 |
||||||
|
13 |
B000705 SCREW More informationQuantity required : 1 |
||||||
|
14 |
B000707 WASHER More informationQuantity required : 2 |
||||||
|
15 |
B000720 VALVE More informationQuantity required : 1 |
||||||
|
16 |
B000707 WASHER More informationQuantity required : 2 |
||||||
|
17 |
B000706 RIDUCTION More informationQuantity required : 1 |
||||||
|
18 |
B000714 WASHER More informationQuantity required : 1 |
||||||
|
19 |
B000705 SCREW More informationQuantity required : 1 |
||||||
|
20 |
B000409 ENGINE " AU " 12V More informationQuantity required : 1 |
||||||
|
21 |
B000433 PUMP More informationQuantity required : 1 |
||||||
|
22 |
B000424 ELECTR. VALVE More informationQuantity required : 1 |
||||||
|
23 |
B000425 TANK DE OIL More informationQuantity required : 1 |
||||||
|
24 |
B000426 BOBINE More informationQuantity required : 1 |
||||||
|
25 |
B000427 GASKET More informationQuantity required : 1 |
||||||
|
26 |
B000428 FILTER More informationQuantity required : 1 |
||||||
|
27 |
B000434 VALV. BCP50-000 More informationQuantity required : 1 |
||||||
|
28 |
56610R ELECTRIC GROUP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/0/img/65650.jpg)
29 |
BOLT TH OEM PIAGGIO COMMON A LA RANGE M10X20-031153 More informationQuantity required : 2 |
||||||
|
30 |
B000436 WASHER More informationQuantity required : 2 |
||||||
|
31 |
B000182 INTERRUPTEUR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/9/img/65439.jpg)
32 |
SCREW CRUCIFORME (4X20) OEM PIAGGIO COMMON A LA RANGE-018544 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
33 |
WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763 More informationQuantity required : 4 |
||||||
|
34 |
B000625 FUSIBLE 80 AMP More informationQuantity required : 1 |
||||||
|
35 |
B000221 ROD SECURITE More informationQuantity required : 1 |
||||||
|
36 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-015249 More informationQuantity required : 1 |
||||||
|
37 |
WASHER PLATE (10. 3X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-178790 More informationQuantity required : 3 |
||||||
|
38 |
B000621 CABLE More informationQuantity required : 1 |
||||||
|
39 |
B000622 CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/2/8/1/img/119281.jpg)
40 |
CENTRE CLIGNOTANTE/BRUITEUR DE BENNE OEM PIAGGIO PORTER-615392 More informationQuantity required : 1 |
||||||
|
41 |
B000218 SPRING More informationQuantity required : 1 |
||||||
|
42 |
BOLT TH OEM PIAGGIO COMMON A LA RANGE M10X20-031153 More informationQuantity required : 1 |
||||||
|
43 |
661184 BRACKET More informationQuantity required : 1 |
