Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Up Date 2009 PIAGGIO VU

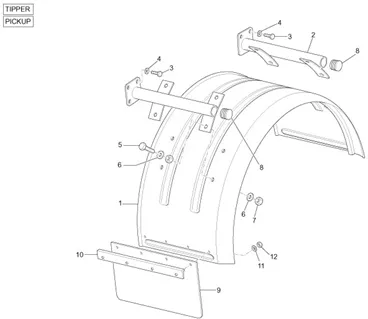

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
Logement roue - Garde boue
Search
GUARD-MUD REAR LEFT OEM PIAGGIO PORTER MAXXI 2010-2015-1E002602

1
P2R reference P2R reference 158604
Maker reference Maker reference 1E002602

GUARD-MUD REAR LEFT OEM PIAGGIO PORTER MAXXI 2010-2015-1E002602

More information

Quantity required : 1

B007687 - GARDEBOUE ARR.DRT.

1
P2R reference P2R reference 121859
Maker reference Maker reference B007687

B007687 - GARDEBOUE ARR.DRT.

More information

Quantity required : 1

B000161 - SUPPORT GUARDE-BOUE

2
P2R reference P2R reference 121379
Maker reference Maker reference B000161

B000161 BRACKET GUARDE-MUD

More information

Quantity required : 4

ARAND.PLANA MECANIZ. D12 DIN125 ZnB

3
P2R reference P2R reference
Maker reference Maker reference 00000031120

ARAND.PLANA MECANIZ. D12 DIN125 ZnB

WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187

4
P2R reference P2R reference 69107
Maker reference Maker reference 834187

WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187

More information

Quantity required : 12

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

5
P2R reference P2R reference 65646
Maker reference Maker reference 0311195

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

More information

Quantity required : 16

WASHER SPRING (6. 4X20X2) OEM PIAGGIO COMMON A LA RANGE-436695

6
P2R reference P2R reference 66501
Maker reference Maker reference 436695

WASHER SPRING (6. 4X20X2) OEM PIAGGIO COMMON A LA RANGE-436695

More information

Quantity required : 32

709052 - ECROU

7
P2R reference P2R reference 110629
Maker reference Maker reference 709052

709052 NUT

More information

Quantity required : 16

B000435 - BOUCHON

8
P2R reference P2R reference 111669
Maker reference Maker reference B000435

B000435 CAP

More information

Quantity required : 2

B025178 - BAVETTE ANTI-ECLABOUSSURES

9
P2R reference P2R reference 134971
Maker reference Maker reference B025178

B025178 - BAVETTE ANTI-ECLABOUSSURES

More information

Quantity required : 1

B025179 - BAVETTE ANTI-ECLABOUSSURES

9
P2R reference P2R reference 134972
Maker reference Maker reference B025179

B025179 MUD FLAP ANTI-ECLABOUSSURES

More information

Quantity required : 1

B000165 - JOINT PARE-BOUE

10
P2R reference P2R reference 117545
Maker reference Maker reference B000165

B000165 GASKET PROTECTOR-MUD

More information

Quantity required : 2

016335 - RONDELLE

11
P2R reference P2R reference 65413
Maker reference Maker reference 0163355

016335-WASHER

More information

Quantity required : 8

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-012138

12
P2R reference P2R reference 111436
Maker reference Maker reference 0121385

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-012138

More information

Quantity required : 8
