Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Up Date 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

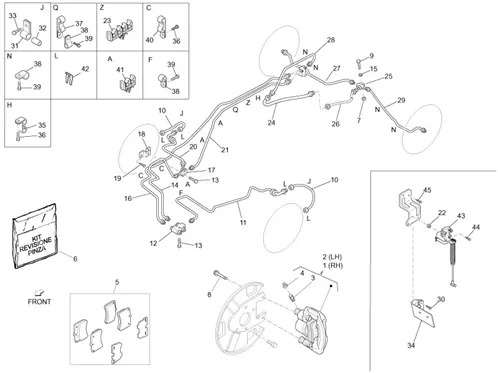

Instalation du freins - transmisisons : 05.01 TUYAUS DU FREINS - ETRIERS DE FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/700/Porter_Maxxi_Up_Date_2009_05.01.PNG)
1 |
B0003616 BRAKE CALIPER RIGHT More informationQuantity required : 1 |
||||||
|
2 |
B000366 - ETRIER DE FREIN GAUCHE More informationQuantity required : 1 |
||||||
|
3 |
4754787206000 CAP More informationQuantity required : 1 |
||||||
|
4 |
4754887501000 CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/0/9/4/img/121094.jpg)
5 |
SET PLAQUETTES FRONT (4 PLAQUETTES) OEM PIAGGIO PORTER FUEL-DIESEL 2020 <-0449187503000 More informationQuantity required : 1 |
||||||
|
6 |
0447987204000 - SERIE JOINTS ETRIER More informationQuantity required : 1 |
||||||
|
7 |
B000295 - EPAISSEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/4/4/img/111944.jpg)
8 |
SCREW TH (9X55) MOUNTING BRAKE CALIPER OEM PIAGGIO PORTER 2020 < 9004101534000 More informationQuantity required : 4 |
||||||
|
9 |
030054-SCREW S03005400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/0/3/img/116403.jpg)
10 |
HOSE/FLEXIBLE/HOSE OF BRAKE FRONT OEM PIAGGIO PORTER 1998 > 2020-B007247 More informationQuantity required : 2 |
||||||
|
11 |
4731487Z10000 HOSE More informationQuantity required : 1 |
||||||
|
12 |
9004415002000 FITTING More informationQuantity required : 1 |
||||||
|
13 |
BOULON |
||||||
|
14 |
4731287Z02000 TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
15 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 1 |
||||||
|
16 |
B007367 - TUYAU FREIN More informationQuantity required : 1 |
||||||
|
17 |
9004413024000 FITTING More informationQuantity required : 1 |
||||||
|
18 |
4735587Z02000 BRACKET More informationQuantity required : 1 |
||||||
|
19 |
9161160612000 BOLT More informationQuantity required : 4 |
||||||
|
20 |
4731387Z02000 - TUBE More informationQuantity required : 1 |
||||||
|
21 |
B007368 HOSE BRAKE More informationQuantity required : 1 |
||||||
|
22 |
B000649 SPACER More informationQuantity required : 2 |
||||||
|
23 |
D9004464157 CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/8/3/1/img/121831.jpg)
24 |
HOSE/FLEXIBLE/HOSE OF BRAKE REAR OEM PIAGGIO PORTER 2020 <-9004922166000 More informationQuantity required : 1 |
||||||
|
25 |
B000274 FITTING HOSE OF BRAKE More informationQuantity required : 1 |
||||||
|
26 |
B000332 - TUYAU More informationQuantity required : 1 |
||||||
|
27 |
B000312 HOSE More informationQuantity required : 1 |
||||||
|
28 |
4731687Z01000 TUBE More informationQuantity required : 1 |
||||||
|
29 |
B000316 HOSE More informationQuantity required : 1 |
||||||
|
30 |
9161160614000 - BOULON More informationQuantity required : 1 |
||||||
|
31 |
D9004461432 CLIPS More informationQuantity required : 2 |
||||||
|
32 |
TAMPON |
||||||
|
34 |
PROTECTION |
||||||
|
35 |
CLIPS |
||||||
|
36 |
9161160612000 BOLT More informationQuantity required : 4 |
||||||
|
37 |
COLLIER |
||||||
|
38 |
D9622130705 CLAMP More informationQuantity required : 4 |
||||||
|
39 |
9165140616000 - BOULON More informationQuantity required : 2 |
||||||
|
40 |
Collier |
||||||
|
41 |
B005041 CLAMP More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/7/2/img/111972.jpg)
42 |
CLAMP/AGRAFE FLEXIBLE OF BRAKE OEM PIAGGIO PORTER-261332 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/3/8/5/img/122385.jpg)
43 |
REPARTITEUR OF BRAKE WITH SPRING OEM PIAGGIO PORTER, CARGO 2020 <-4790087Z01000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/1/4/img/65614.jpg)
44 |
SCREW TH (8X55) OEM PIAGGIO COMMON A LA RANGE-030076 More informationQuantity required : 2 |
||||||
|
45 |
D9161160816 BOLT More informationQuantity required : 2 |
