Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Up Date 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

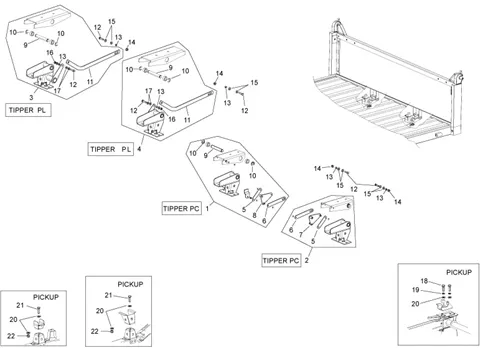

Châssis - parties plastiques - carrosseries : 02.19 COMPOSANTS DE LA BENNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/700/Porter_Maxxi_Up_Date_2009_02.19.PNG)
1 |
B000211 - CHARNIERE DROITE More informationQuantity required : 1 |
||||||
|
2 |
B000210 CHARNIERE LEFT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/0/2/3/img/121023.jpg)
3 |
CHARNIERE DE RIDELLE RIGHT PLATEAU BASCULANT LONG OEM PIAGGIO PORTER MAXI 2020 <-B000219 More informationQuantity required : 1 |
||||||
|
3 |
B007496 CHARNIERE RIGHT More informationQuantity required : 1 |
||||||
|
4 |
CHARNIERE DE RIDELLE LEFT OEM PIAGGIO PORTER MAXI-B000241 More informationQuantity required : 1 |
||||||
|
4 |
B007497 CHARNIERE LEFT More informationQuantity required : 1 |
||||||
|
5 |
B000339 LEVER PORTER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/0/4/8/img/117048.jpg)
6 |
LEVER EXTERIEUR DE CHARNIERE DE BENNE OEM PIAGGIO PORTER-B000340 More informationQuantity required : 2 |
||||||
|
7 |
B000341 LEVER GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/9/9/4/img/119994.jpg)
8 |
LEVER OUVERTURE DE RIDELLE REAR OEM PIAGGIO PORTER 2010 > 2020 More informationQuantity required : 1 |
||||||
|
9 |
B000315 PIVOT More informationQuantity required : 4 |
||||||
|
10 |
B000608 CIRCLIPS More informationQuantity required : 8 |
||||||
|
11 |
B000252 LEVER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/1/2/img/65612.jpg)
12 |
SCREW TH (8X35) OEM PIAGGIO COMMON A LA RANGE-030072 More informationQuantity required : 6 |
||||||
|
13 |
B000227 SPACER More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/2/5/img/70925.jpg)
14 |
NUT FLANGE (8X1. 25) OEM PIAGGIO COMMON A LA RANGE-967363 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/4/img/63764.jpg)
15 |
WASHER PLATE (8. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-002383 More informationQuantity required : 8 |
||||||
|
16 |
709052 NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
17 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 6 |
||||||
|
18 |
B004264 BOLT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/9/img/65419.jpg)
19 |
WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
20 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/2/img/65652.jpg)
21 |
SCREW TH (10X35) OEM PIAGGIO COMMON A LA RANGE-031159 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/6/img/65376.jpg)
22 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-015249 More informationQuantity required : 4 |
