Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Up Date 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

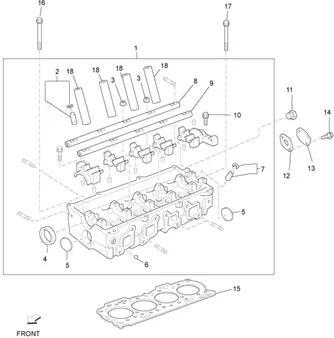

Moteur : 01.10 ENSEMBLE CULASSE - SOUPAPE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/700/Porter_Maxxi_Up_Date_2009_01.10.PNG)
1 |
1110187125000 - CULASSE More informationQuantity required : 1 |
||||||
|
2 |
1112487101000 GUIDE VALVE More informationQuantity required : 8 |
||||||
|
3 |
9641112200000 - JOINT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/4/1/5/img/118415.jpg)
4 |
GASKET SPY CAMSHAFT OEM PIAGGIO 1300 PORTER 4 CYLINDRES 1998 > 2009-9004311343000 More informationQuantity required : 1 |
||||||
|
5 |
9641144000000 GASKET More informationQuantity required : 2 |
||||||
|
6 |
9004360011000 BILLE More informationQuantity required : 1 |
||||||
|
7 |
1112887101000 - GUIDE SOUPAPE More informationQuantity required : 8 |
||||||
|
8 |
1390187105000 - ARBRE CULBUTEUR More informationQuantity required : 1 |
||||||
|
9 |
1390287101000 - ARBRE CULBUTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/9/1/img/110491.jpg)
10 |
SCREW TH (8X40) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-D9161160840 More informationQuantity required : 2 |
||||||
|
11 |
BOUCHON |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/0/9/5/img/113095.jpg)
12 |
GASKET OF HATCH COOLING ON CYLINDER HEAD OEM PIAGGIO PORTER-1634187104000 More informationQuantity required : 1 |
||||||
|
13 |
1633487103000 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/5/9/2/img/112592.jpg)
14 |
D9161160820 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/9/9/8/img/119998.jpg)
15 |
CYLINDER HEAD GASKET OEM PIAGGIO PORTER 1998 > 2010-1111587501 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/3/6/img/114036.jpg)
16 |
SCREW OF CYLINDER HEAD OEM PIAGGIO PORTER 1992 > 2009-9004119791000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/2/7/7/img/115277.jpg)
17 |
SCREW OF CYLINDER HEAD OEM PIAGGIO PORTER 2010 <-9004119589000 More informationQuantity required : 8 |
||||||
|
18 |
9004440013000 GASKET More informationQuantity required : 4 |
