Vehicle Exploded View - GILERA NEXUS 500 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

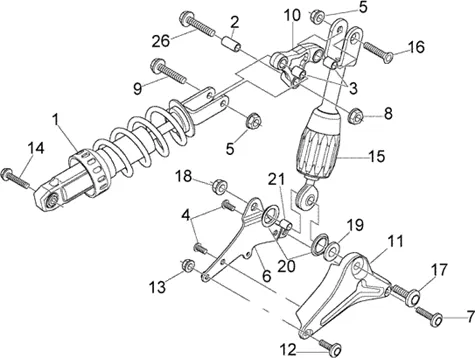

Suspensions-roues : T31 AMORTISSEUR ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/665/Nexus_500_1998-2005_T31.PNG)
1 |
56159R-AMMORTISSEUR More informationQuantity required : 1 |
||||||
|
2 |
975123-SPACER More informationQuantity required : 1 |
||||||
|
3 |
975118-SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/7/6/img/110276.jpg)
4 |
SCREW BTR HEAD BOMBEE (8X20) OEM PIAGGIO COMMON A LA RANGE-263381 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/8/4/img/67084.jpg)
5 |
NUT FLANGE (M10) OEM PIAGGIO COMMON A LA RANGE-564878 More informationQuantity required : 2 |
||||||
|
6 |
TUYAU POUR BRAS OSCILLANT |
||||||
|
7 |
975830 - VIS More informationQuantity required : 1 |
||||||
|
8 |
621934 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/0/5/7/img/79057.jpg)
8 |
NUT FLANGE (12X1. 5) VILLEBREQUIN OEM PIAGGIO 125 VESPA PX, THREE-WHEELER APE POKER/NUT REAR SHOCK ABSORBER GILERA 500 NEXUS/PIAGGIO 500 X9-487724 More informationQuantity required : 1 |
||||||
|
8 |
975695-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/9/img/66069.jpg)
9 |
SCREW FLANGE TH (10X55) MOUNTING REAR SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-268158 More informationQuantity required : 1 |
||||||
|
10 |
BRAS DE LA SUSPENSION |
||||||
|
11 |
842601 - SUPPORT AMMORTIZ. More informationQuantity required : 1 |
||||||
|
11 |
975121 - ROULEMENT More informationQuantity required : 2 |
||||||
|
12 |
975830 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/8/img/67348.jpg)
13 |
NUT FLANGE AUTOBLOQUANT (M6) OEM PIAGGIO COMMON A LA RANGE-59565 More informationQuantity required : 2 |
||||||
|
14 |
967384-SCREW More informationQuantity required : 1 |
||||||
|
15 |
AMORTISSEUR |
||||||
|
16 |
975119 - VIS More informationQuantity required : 1 |
||||||
|
17 |
668817-SCREW More informationQuantity required : 1 |
||||||
|
17 |
VIS |
||||||
|
18 |
621934 - ECROU More informationQuantity required : 1 |
||||||
|
18 |
NUT FLANGE (12X1. 5) VILLEBREQUIN OEM PIAGGIO 125 VESPA PX, THREE-WHEELER APE POKER/NUT REAR SHOCK ABSORBER GILERA 500 NEXUS/PIAGGIO 500 X9-487724 More informationQuantity required : 1 |
||||||
|
19 |
841140-SPACER More informationQuantity required : 1 |
||||||
|
20 |
975800 - BAGUE More informationQuantity required : 2 |
||||||
|
21 |
842590 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
22 |
828340 - VIS More informationQuantity required : 2 |
||||||
|
22 |
842601 - SUPPORT AMMORTIZ. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/5/img/69355.jpg)
23 |
SCREW BTR (8X75) OEM PIAGGIO COMMON A LA RANGE-845591 More informationQuantity required : 1 |
||||||
|
24 |
621365-CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/8/img/65768.jpg)
25 |
GASKET CUIVRE SONDE DE TEMPERATURE COOLING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-168077 More informationQuantity required : 1 |
||||||
|
25 |
975124-SCREW More informationQuantity required : 1 |
||||||
|
26 |
975124-SCREW More informationQuantity required : 1 |
