Vehicle Exploded View - GILERA NEXUS 500 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

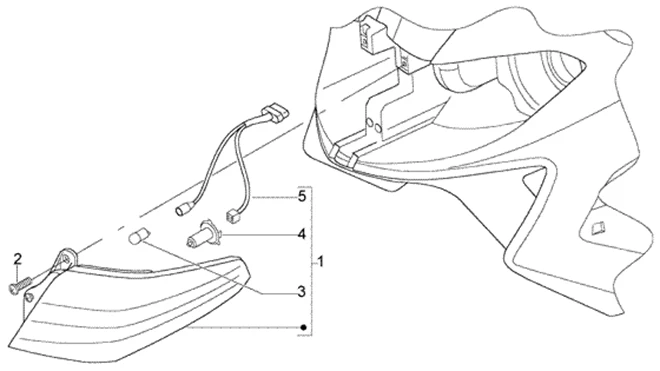

Connexions électriques : T36 FEUX AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/665/Nexus_500_1998-2005_T36.PNG)
1 |
584486 - OPTIQUE DROIT More informationQuantity required : 1 |
||||||
|
1 |
638696 - GROUPE OPTIQUE More informationQuantity required : 1 |
||||||
|
1 |
584747 - OPTIQUE GAUCHE More informationQuantity required : 1 |
||||||
|
1 |
638697 - GROUPE OPTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
2 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
3 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/7/2/img/66272.jpg)
4 |
AMPOULE/LAMPE 12V 55W H7 OEM PIAGGIO COMMON A LA RANGE-294353 More informationQuantity required : 1 |
||||||
|
5 |
584906-HARNESS HEADLAMP More informationQuantity required : 2 |
||||||
|
5 |
584907 - FAISCEAU PHARE More informationQuantity required : 2 |
