Vehicle Exploded View - GILERA NEXUS 500 1998-2005 GILERA

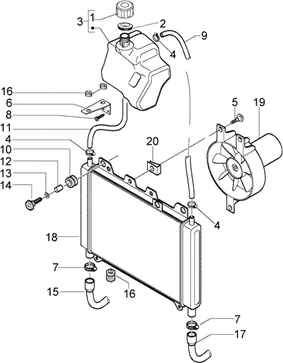

Châssis : T20 CIRCUIT DE REFROIDISSEMENT
Circuit De Refroidissement
Search
CAP VASE EXPANSION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-623673

1
P2R reference P2R reference 67743
Maker reference Maker reference 623673

CAP VASE EXPANSION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-623673

More information

Quantity required : 1

GASKET OF CAP DE TANK LIQUIDE COOLING OEM PIAGGIO 125-250-400 BEVERLY, X-EVO, X8, 50-125 VESPA PRIMAVERA, SPRINT, 50 ZIP, NRG/GILERA 125-250-300 NEXUS, X-MAX-620737

2
P2R reference P2R reference 67632
Maker reference Maker reference 620737

GASKET OF CAP DE TANK LIQUIDE COOLING OEM PIAGGIO 125-250-400 BEVERLY, X-EVO, X8, 50-125 VESPA PRIMAVERA, SPRINT, 50 ZIP, NRG/GILERA 125-250-300 NEXUS, X-MAX-620737

More information

Quantity required : 1

975031 - RESERVOIR D'EXPANSION

3
P2R reference P2R reference 71009
Maker reference Maker reference 975031

975031 - RESERVOIR D'EXPANSION

More information

Quantity required : 1

CLAMP (16. 2MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001903

4
P2R reference P2R reference 72865
Maker reference Maker reference CM001903

CLAMP (16. 2MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001903

More information

Quantity required : 3

SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836

5
P2R reference P2R reference 66117
Maker reference Maker reference 272836

SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836

More information

Quantity required : 3

975592 - ETRIER

6
P2R reference P2R reference 71040
Maker reference Maker reference 975592

975592-CALIPER

More information

Quantity required : 1

CLAMP HOSE COOLING (28. 6 MM) OEM PIAGGIO COMMON A LA RANGE-CM001915

7
P2R reference P2R reference 72876
Maker reference Maker reference CM001915

CLAMP HOSE COOLING (28. 6 MM) OEM PIAGGIO COMMON A LA RANGE-CM001915

More information

Quantity required : 2

SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793

8
P2R reference P2R reference 66092
Maker reference Maker reference 270793

SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793

More information

Quantity required : 2

CM007007 - TUYAU REFOULEMENT RESERVOIR-RADIATEUR

9
P2R reference P2R reference 72912
Maker reference Maker reference CM007007

CM007007-HOSE REFOULEMENT TANK-RADIATOR

More information

Quantity required : 1

975696 - TUBE

9
P2R reference P2R reference 71050
Maker reference Maker reference 975696

975696-TUBE

More information

Quantity required : 1

RUBBER ANTI-VIBRATIONS OEM PIAGGIO COMMON A LA RANGE

10
P2R reference P2R reference 66345
Maker reference Maker reference 351782

RUBBER ANTI-VIBRATIONS OEM PIAGGIO COMMON A LA RANGE

More information

Quantity required : 2

975696 - TUBE

11
P2R reference P2R reference 71050
Maker reference Maker reference 975696

975696-TUBE

More information

Quantity required : 1

SPACER (6X10X11. 4) OEM PIAGGIO COMMON A LA RANGE-273288

12
P2R reference P2R reference 66123
Maker reference Maker reference 273288

SPACER (6X10X11. 4) OEM PIAGGIO COMMON A LA RANGE-273288

More information

Quantity required : 2

WASHER 6, 2X20X1 OEM PIAGGIO COMMON A TOUTE LA RANGE-013092

13
P2R reference P2R reference 65356
Maker reference Maker reference 0130925

WASHER 6, 2X20X1 OEM PIAGGIO COMMON A TOUTE LA RANGE-013092

More information

Quantity required : 2

SCREW CRUCIFORME (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-271891

14
P2R reference P2R reference 66107
Maker reference Maker reference 271891

SCREW CRUCIFORME (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-271891

More information

Quantity required : 2

COOLANT PIPE (FROM PUMP TO RADIATOR) "PIAGGIO GENUINE PART" GILERA 500 NEXUS/PIAGGIO 500 X9 -975697

15
P2R reference P2R reference 94306
Maker reference Maker reference 975697

COOLANT PIPE (FROM PUMP TO RADIATOR) "PIAGGIO GENUINE PART" GILERA 500 NEXUS/PIAGGIO 500 X9 -975697

More information

Quantity required : 1

RUBBER MOUNT OEM PIAGGIO COMMON A TOUTE LA RANGE MAXISCCOOTER-258904

16
P2R reference P2R reference 66031
Maker reference Maker reference 258904

RUBBER MOUNT OEM PIAGGIO COMMON A TOUTE LA RANGE MAXISCCOOTER-258904

More information

Quantity required : 4

975698 - TUYAU RADIATEUR

17
P2R reference P2R reference 94307
Maker reference Maker reference 975698

975698 - TUYAU RADIATEUR

More information

Quantity required : 1

COOLING RADIATOR "PIAGGIO GENUINE PART" 250-300-400-500 BEVERLY, 500 X9/GILERA 125-250-300-500 NEXUS/APRILIA 250-300-400-500 SCARABEO -57311R-

18
P2R reference P2R reference 67093
Maker reference Maker reference 57311R

RADIATOR OEM PIAGGIO 250-300-400-500 BEVERLY, 500 X9/GILERA 125-250-300-500 NEXUS/APRILIA 250-300-400-500 SCARABEO-57311R

More information

Quantity required : 1

VENTILATEUR MAXSCOOTER OEM PIAGGIO 125-250-300-400-500 MP3, BEVERLY, X-EVO, X10/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX-58211R

19
P2R reference P2R reference 67244
Maker reference Maker reference 58211R

VENTILATEUR MAXSCOOTER OEM PIAGGIO 125-250-300-400-500 MP3, BEVERLY, X-EVO, X10/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX-58211R

More information

Quantity required : 1

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

20
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 3
