Vehicle Exploded View - GILERA NEXUS 500 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

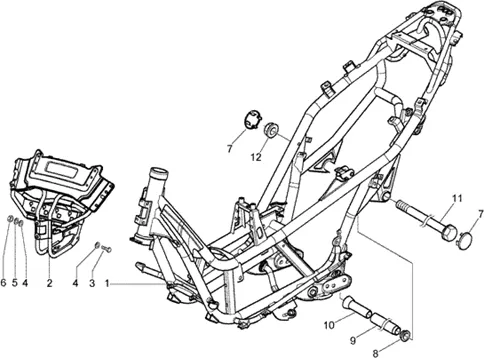

Châssis : T18 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/665/Nexus_500_1998-2005_T18.PNG)
1 |
Chássis |
||||||
|
2 |
9750394 - CHÁSSIS More informationQuantity required : 1 |
||||||
|
3 |
030059 - BOULON FIX POMPE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/8/img/65368.jpg)
4 |
WASHER PLATE (6, 2X18X2) OEM PIAGGIO COMMON A LA RANGE-013950 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
5 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
6 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/3/1/6/img/94316.jpg)
7 |
975722 - BOUCHON More informationQuantity required : 2 |
||||||
|
8 |
975104 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
9 |
975105-SPACER More informationQuantity required : 1 |
||||||
|
10 |
975108 - JOINT More informationQuantity required : 1 |
||||||
|
11 |
975109-BOLT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/2/8/img/71028.jpg)
12 |
NUT OEM MOPED SWINGARM OEM PIAGGIO GILERA 500 NEXUS, GP 800/APRILIA SRV 850-975110 More informationQuantity required : 1 |
