Vehicle Exploded View - GILERA NEXUS 500 1998-2005 GILERA

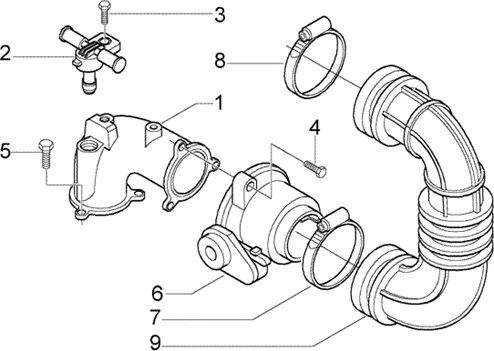

Moteur : T15 RACCORD D’ADMISSION-CORPS PAPILLON-INJECTEUR
Raccord D’admission-Corps Papillon-Injecteur
Search
INTAKE MANIFOLD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -830062-

1
P2R reference P2R reference 68891
Maker reference Maker reference 830062

INTAKE MANIFOLD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -830062-

More information

Quantity required : 1

INJECTEUR COMPLETE OEM PIAGGIO 400 X8 2004 > 2006, X-EVO 2007 >, 500 BEVERLY 2006 >, X9 2003 >/GILERA 500 NEXUS 2006 >/APRILIA 500 ATLANTIC 2001 >-8304275

2
P2R reference P2R reference 68915
Maker reference Maker reference 8304275

INJECTEUR COMPLETE OEM PIAGGIO 400 X8 2004 > 2006, X-EVO 2007 >, 500 BEVERLY 2006 >, X9 2003 >/GILERA 500 NEXUS 2006 >/APRILIA 500 ATLANTIC 2001 >-8304275

More information

Quantity required : 1

SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061

3
P2R reference P2R reference 68890
Maker reference Maker reference 830061

SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061

More information

Quantity required : 1

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

4
P2R reference P2R reference 72725
Maker reference Maker reference B016792

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

More information

Quantity required : 3

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

5
P2R reference P2R reference 72720
Maker reference Maker reference B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

More information

Quantity required : 3

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

5
P2R reference P2R reference 72720
Maker reference Maker reference 414837

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

More information

Quantity required : 3

CARBURATEUR

6
P2R reference P2R reference
Maker reference Maker reference 826000

CARBURATEUR

CLAMP GUIDE CABLE OEM PIAGGIO X9 500, MP3 400-500/GILERA FUOCO, NEXUS 250-500-253293

7
P2R reference P2R reference 66006
Maker reference Maker reference 253293

CLAMP GUIDE CABLE OEM PIAGGIO X9 500, MP3 400-500/GILERA FUOCO, NEXUS 250-500-253293

More information

Quantity required : 1

CLAMP 58-62. 5 OEM PIAGGIO COMMON A LA RANGE-260918

8
P2R reference P2R reference 66046
Maker reference Maker reference 260918

CLAMP 58-62. 5 OEM PIAGGIO COMMON A LA RANGE-260918

More information

Quantity required : 1

HOSE-FROM INJECTION BODY TO AIR FILTER "PIAGGIO GENUINE PART" GILERA 500 NEXUS -849591-

9
P2R reference P2R reference 93082
Maker reference Maker reference 849591

HOSE/SLEEVE ENTRE AIR FILTER ET THROTTLE BODY OEM PIAGGIO GILERA 500 NEXUS-849591

More information

Quantity required : 1
