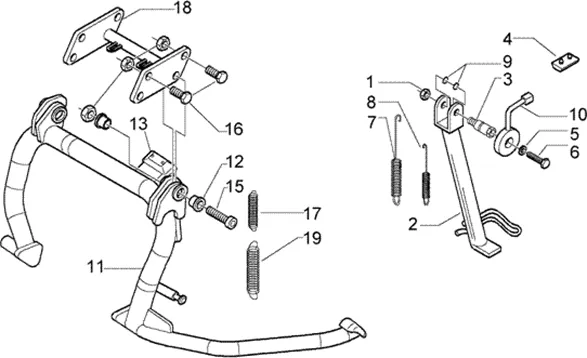

Vehicle Exploded View - GILERA NEXUS 500 1998-2005 GILERA

Châssis : T19 BEQUILLES
Bequilles
Search
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440

1
P2R reference P2R reference 63765
Maker reference Maker reference 0024405

NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440

More information

Quantity required : 1

975717 - BEQUILLE M35

2
P2R reference P2R reference 94314
Maker reference Maker reference 975717

975717-STAND M35

More information

Quantity required : 1

583155 - VIS

3
P2R reference P2R reference 81877
Maker reference Maker reference 583155

583155-SCREW

More information

Quantity required : 1

BUFFER DE STAND OEM PIAGGIO COMMON LA RANGE SCOOTER ET MAXI SCOOTER-582885

4
P2R reference P2R reference 67268
Maker reference Maker reference 582885

BUFFER DE STAND OEM PIAGGIO COMMON LA RANGE SCOOTER ET MAXI SCOOTER-582885

More information

Quantity required : 1

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

5
P2R reference P2R reference 65366
Maker reference Maker reference 0138805

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

More information

Quantity required : 1

SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088

6
P2R reference P2R reference 65639
Maker reference Maker reference 0310885

SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088

More information

Quantity required : 1

SPRING DE STAND LATERAL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-295789

7
P2R reference P2R reference 66287
Maker reference Maker reference 295789

SPRING DE STAND LATERAL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-295789

More information

Quantity required : 1

SPRING DE STAND OEM PIAGGIO COMMON A TOUTE LA RANGE-295788

8
P2R reference P2R reference 66286
Maker reference Maker reference 295788

SPRING DE STAND OEM PIAGGIO COMMON A TOUTE LA RANGE-295788

More information

Quantity required : 1

O-RING SIDE STAND OEM PIAGGIO 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV-191189

9
P2R reference P2R reference 65812
Maker reference Maker reference 191189

O-RING SIDE STAND OEM PIAGGIO 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV-191189

More information

Quantity required : 2

CONTACTEUR/INTERRUPTEUR DE STAND OEM PIAGGIO 125-250-500 BEVERLY, 125-500 X9-582633

10
P2R reference P2R reference 81787
Maker reference Maker reference 582633

CONTACTEUR/INTERRUPTEUR DE STAND OEM PIAGGIO 125-250-500 BEVERLY, 125-500 X9-582633

More information

Quantity required : 1

CENTER STAND "PIAGGIO GENUINE PART" GILERA 500 NEXUS -975821-

11
P2R reference P2R reference 94325
Maker reference Maker reference 975821

CENTER STAND "PIAGGIO GENUINE PART" GILERA 500 NEXUS -975821-

More information

Quantity required : 1

BUSH/SPACER OEM PIAGGIO COMMON A LA RANGE-647225

12
P2R reference P2R reference 68014
Maker reference Maker reference 647225

BUSH/SPACER OEM PIAGGIO COMMON A LA RANGE-647225

More information

Quantity required : 4

BUFFER DE STAND OEM PIAGGIO 50 VESPA LX 4T, VESPA-S 4T, ZIP 4T, LIBERTY 4T, 125 VESPA LX, VESPA-S, FLY, 400-500 BEVERLY-563984

13
P2R reference P2R reference 67043
Maker reference Maker reference 563984

BUFFER DE STAND OEM PIAGGIO 50 VESPA LX 4T, VESPA-S 4T, ZIP 4T, LIBERTY 4T, 125 VESPA LX, VESPA-S, FLY, 400-500 BEVERLY-563984

More information

Quantity required : 1

RUBBER MOUNT/BUFFER DE STAND OEM PIAGGIO 500 NEXUS, 50-125 ET4-600351

13
P2R reference P2R reference 67431
Maker reference Maker reference 600351

RUBBER MOUNT/BUFFER DE STAND OEM PIAGGIO 500 NEXUS, 50-125 ET4-600351

More information

Quantity required : 1

NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440

14
P2R reference P2R reference 63765
Maker reference Maker reference 0024405

NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440

More information

Quantity required : 6

SCREW BTR (10X50) OEM PIAGGIO COMMON A LA RANGE-583480

15
P2R reference P2R reference 67285
Maker reference Maker reference 583480

SCREW BTR (10X50) OEM PIAGGIO COMMON A LA RANGE-583480

More information

Quantity required : 2

BOLT TH OEM PIAGGIO COMMON A LA RANGE M10X20-031153

16
P2R reference P2R reference 65650
Maker reference Maker reference 0311535

BOLT TH OEM PIAGGIO COMMON A LA RANGE M10X20-031153

More information

Quantity required : 4

SPRING (PETIT) CENTRE STAND (150X19. 5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-583162

17
P2R reference P2R reference 67278
Maker reference Maker reference 583162

SPRING (PETIT) CENTRE STAND (150X19. 5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-583162

More information

Quantity required : 1

9757555 - PLAQUE

18
P2R reference P2R reference 94319
Maker reference Maker reference 9757555

9757555 - PLAQUE

More information

Quantity required : 1

SPRING (GROS) CENTRE STAND (150X30) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-583161

19
P2R reference P2R reference 67277
Maker reference Maker reference 583161

SPRING (GROS) CENTRE STAND (150X30) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-583161

More information

Quantity required : 1
