Vehicle Exploded View - GILERA NEXUS 500 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

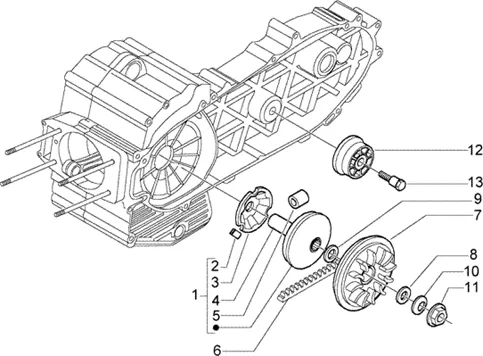

Moteur : T8 POULIE MOTRICE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/665/Nexus_500_1998-2005_T8.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/5/9/9/img/157599.jpg)
00 |
TRANSMISSION KIT"PIAGGIO GENUINE PARTS" BELT,ROLLERS,GUIDES- 500 X9 EVOLUTION ABS -1R000429 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/3/6/img/149136.jpg)
1 |
PULLEY MOTRICE/VARIATOR OEM PIAGGIO 500 MP3 2010 >, BEVERLY 2005 >, X10 2012 >, X9 2003 >/GILERA 500 FUOCO 2007 >, NEXUS 2006 >/APRILIA 400 ATLANTIC-SPRINT 2005 > 2008, 500 ATLANTIC 2001 > 2008-1A007791 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/5/5/img/69055.jpg)
2 |
GUIDE/PATIN DE VARIATOR OEM PIAGGIO 500 X9, BEVERLY 1998 > 2005/GILERA 500 NEXUS 1998 > 2005/APRILIA 500 ATLANTIC, SCARABEO 2001 > 2006-833293 More informationQuantity required : 3 |
||||||
3 |
829344 - CUVETTE More informationQuantity required : 1 |
||||||
|
4 |
825381 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/6/0/img/68960.jpg)
5 |
GALET/ROLLER OEM PIAGGIO 500 BEVERLY 1998 > 2005, X9 1998 > 2005/APRILIA 500 ATLANTIC 2001 > 2004, SCARABEO 2003 > 2006/GILERA 500 NEXUS 1998 > 2005 (SET OF 6)-8312655 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/1/5/img/69015.jpg)
6 |
DRIVE BELT MAXI SCOOTER OEM PIAGGIO 400 MP3, X8, X-EVO, BEVERLY, 500 X9/APRILIA 400-500 ATLANTIC/GILERA 500 NEXUS-832738 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/1/1/img/69011.jpg)
7 |
FLASQUE FIXE DE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 2020 <-832697 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/2/4/img/68824.jpg)
8 |
WASHER PLATE (18. 1X42X3) DE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-829205 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/2/3/img/68823.jpg)
9 |
WASHER PLATE (22. 1X36X2) OEM PIAGGIO COMMON A LA RANGE-829203 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/3/0/img/68830.jpg)
10 |
WASHER ELASTIC (D18) DE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-829251 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/2/7/img/68827.jpg)
11 |
NUT DE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-829232 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/1/1/img/69111.jpg)
12 |
PULLEY TENSION DE BELT OEM PIAGGIO 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO/APRILIA 400-500 ATLANTIC, SCARABEO-834304 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/6/5/img/68865.jpg)
13 |
SCREW PULLEY DE BELT (8X25) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-829693 More informationQuantity required : 1 |
