Vehicle Exploded View - GILERA NEXUS 500 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

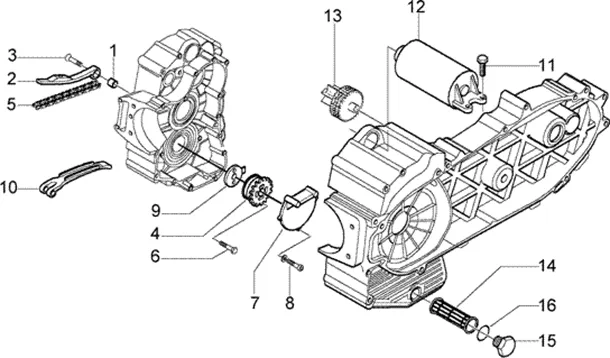

Moteur : T11 POMPE A HUILE-DÉMARRAGE ÉLECTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/665/Nexus_500_1998-2005_T11.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/6/5/img/68565.jpg)
1 |
SPACER DE TENDEUR DE CHAIN DE TIMING OEM PIAGGIO 350-400-500-530 MP3, BEVERLY, X9-825737 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/1/2/img/68712.jpg)
2 |
TENDEUR DE CHAIN OEM PIAGGIO COMMON A LA RANGE 400/500 BEVERLY, MP3, X8, X9, XEVO, < 2010-827886 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/8/img/72728.jpg)
3 |
SCREW BTR HEAD FRAISEE (6X16) OEM PIAGGIO COMMON A LA RANGE-B016797 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/0/1/img/70601.jpg)
4 |
OIL PUMP COMPLETE OEM PIAGGIO 400-500 MP3, BEVERLY 2006 >, 400 X8 2004 > 2006, X-EVO 2007 >, 500 X9 2003 >, X10 2012 >/GILERA 500 NEXUS, FUOCO/APRILIA 400-500 ATLANTIC, SCARABEO-876225 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/1/3/img/68713.jpg)
5 |
CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-827889 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/8/img/66438.jpg)
6 |
SCREW FLANGE TH (5X30) OEM PIAGGIO COMMON A LA RANGE-433477 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/2/img/68892.jpg)
7 |
CLOISON/COVER OF PUMP A OIL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-83064 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
8 |
SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/5/1/img/69551.jpg)
9 |
GASKET OF OIL PUMP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-530 CC-847962 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/9/img/68709.jpg)
10 |
PATIN TENDEUR DE CHAIN TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-827882 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
11 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 2 |
||||||
|
11 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/3/4/img/68634.jpg)
12 |
STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 400-500-530 MP3, BEVERLY, 400 X-EVO, 500 X10/GILERA 500 NEXUS, FUOCO/APRILIA 400-500 ATLANTIC-82699R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/3/5/img/70635.jpg)
13 |
SPROCKET DE STARTER MOTOR OEM PIAGGIO 400-500-530 MP3, BEVERLY, 400 X-EVO, 500 X9, X10/GILERA 500 FUOCO, NEXUS, 800 GP/APRILIA 400-500 SCARABEO, ATLANTIC-876835 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/7/7/img/68577.jpg)
14 |
CREPINE OIL FILTER MAXI SCOOTER OEM PIAGGIO 400-500 MP3 2007 >, BEVERLY 2005 >, 400 X8 2004 >, X-EVO 2007 >, 500 X10 2012 >, X9 2003 >/GILERA 500 FUOCO, NEXUS 2005 >/APRILIA 400-500 ATLANTIC 2003 >-826033 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/9/img/68589.jpg)
15 |
COVER DE CREPINE D'HUILE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-826165 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/9/img/66149.jpg)
16 |
GASKET CAP DE VIDANGE (Ø31, 47X1, 78MM) OEM PIAGGIO 125-250-400-500 MP3, BEVERLY, X-EVO, X8, X9, 125 FLY, 125-500 X10/GILERA 125-500 NEXUS/APRILIA 125-400-500 ATLANTIC, SCARABEO-285536 More informationQuantity required : 1 |
