Vehicle Exploded View - GILERA NEXUS 500 1998-2005 GILERA

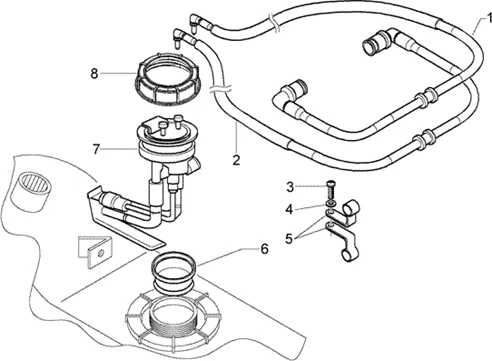

Châssis : T22 CIRCUIT D'ALIMENTATION
Circuit D'alimentation
Search
621617 - TUYAU POUR CARBURATEUR

1
P2R reference P2R reference 67661
Maker reference Maker reference 621617

621617 - TUYAU POUR CARBURATEUR

More information

Quantity required : 1

621616 - TUYAU REFOULEMENT POUR CARBURATEUR

2
P2R reference P2R reference 84029
Maker reference Maker reference 621616

621616 - TUYAU REFOULEMENT POUR CARBURATEUR

More information

Quantity required : 1

SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109

3
P2R reference P2R reference 127167
Maker reference Maker reference 1A003109

SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109

More information

Quantity required : 1

WASHER A TEETH (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-012528

4
P2R reference P2R reference 65342
Maker reference Maker reference 0125285

WASHER A TEETH (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-012528

More information

Quantity required : 1

273779 - COLLIER

5
P2R reference P2R reference 66129
Maker reference Maker reference 273779

273779-CLAMP

More information

Quantity required : 2

GASKET OF JAUGE A FUEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-656003

6
P2R reference P2R reference 127181
Maker reference Maker reference 656003

GASKET OF JAUGE A FUEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-656003

More information

Quantity required : 1

641131 - POMPE ELECTRIQUE

7
P2R reference P2R reference 86118
Maker reference Maker reference 641131

641131 - POMPE ELECTRIQUE

More information

Quantity required : 1

NUT/BUSH PUMP OEM PIAGGIO COMMON A LA RANGE-576546

8
P2R reference P2R reference 67133
Maker reference Maker reference 576546

NUT/BUSH PUMP OEM PIAGGIO COMMON A LA RANGE-576546

More information

Quantity required : 1
