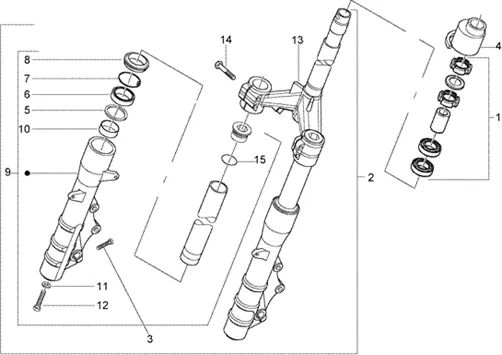

Vehicle Exploded View - GILERA NEXUS 500 1998-2005 GILERA

Suspensions-roues : T30 FOURCHE
Fourche
Search
SET OF STEERING (ROLLER CAGE CONIQUE) OEM PIAGGIO 125-250-500 X9, 125 X8 2004 >/GILERA 500 NEXUS 2000 >-5982615

1
P2R reference P2R reference 82357
Maker reference Maker reference 5982615

SET OF STEERING (ROLLER CAGE CONIQUE) OEM PIAGGIO 125-250-500 X9, 125 X8 2004 >/GILERA 500 NEXUS 2000 >-5982615

More information

Quantity required : 1

FRONT FORK "PIAGGIO GENUINE PART" GILERA 500 NEXUS -56141R-

2
P2R reference P2R reference 79780
Maker reference Maker reference 56141R

FRONT FORK "PIAGGIO GENUINE PART" GILERA 500 NEXUS -56141R-

More information

Quantity required : 1

649619 - BOULON

3
P2R reference P2R reference 68085
Maker reference Maker reference 649619

649619-BOLT

More information

Quantity required : 4

975683 - COLLIER

4
P2R reference P2R reference 71046
Maker reference Maker reference 975683

975683-CLAMP

More information

Quantity required : 1

975701 - JOINT DE FOURCHE

5
P2R reference P2R reference 94308
Maker reference Maker reference 975701

975701-GASKET OF FORK

More information

Quantity required : 2

OIL SEAL DE FORK KAYABA (D41) OEM PIAGGIO 400-500 BEVERLY/GILERA 500 NEXUS, 800 GP/APRILIA 850 SRV-599267

6
P2R reference P2R reference 67375
Maker reference Maker reference 599267

OIL SEAL DE FORK KAYABA (D41) OEM PIAGGIO 400-500 BEVERLY/GILERA 500 NEXUS, 800 GP/APRILIA 850 SRV-599267

More information

Quantity required : 2

599271 - CLIPS

7
P2R reference P2R reference 67379
Maker reference Maker reference 599271

599271 - CLIPS

More information

Quantity required : 2

PROTECTOR POUSSIERE DE FORK KAYABA OEM PIAGGIO 400-500 BEVERLY/GILERA 500 NEXUS, 800 GP/APRILIA 850 SRV-599272

8
P2R reference P2R reference 67380
Maker reference Maker reference 599272

PROTECTOR POUSSIERE DE FORK KAYABA OEM PIAGGIO 400-500 BEVERLY/GILERA 500 NEXUS, 800 GP/APRILIA 850 SRV-599272

More information

Quantity required : 2

975708 - BRAS DE FOURCHE DROIT

9
P2R reference P2R reference 94311
Maker reference Maker reference 975708

975708 - BRAS DE FOURCHE DROIT

More information

Quantity required : 1

975709 - BRAS DE FOURCHE GAUCHE

9
P2R reference P2R reference 94312
Maker reference Maker reference 975709

975709-ARM DE FORK LEFT

More information

Quantity required : 1

BUSH DE FOURREAU DE FORK UPPER OEM PIAGGIO 400-500 BEVERLY/GILERA 500 NEXUS, GP 800/APRILIA 850 SRV-599265

10
P2R reference P2R reference 67373
Maker reference Maker reference 599265

BUSH DE FOURREAU DE FORK UPPER OEM PIAGGIO 400-500 BEVERLY/GILERA 500 NEXUS, GP 800/APRILIA 850 SRV-599265

More information

Quantity required : 2

GASKET/WASHER DE FORK LOWER KAYABA OEM PIAGGIO COMMON A LA RANGE-599270

11
P2R reference P2R reference 67378
Maker reference Maker reference 599270

GASKET/WASHER DE FORK LOWER KAYABA OEM PIAGGIO COMMON A LA RANGE-599270

More information

Quantity required : 2

599269

12
P2R reference P2R reference 67377
Maker reference Maker reference 599269

599269

More information

Quantity required : 2

975706 - T DE FOURCHE

13
P2R reference P2R reference 94309
Maker reference Maker reference 975706

975706 - T DE FOURCHE

More information

Quantity required : 1

975707 - VIS

14
P2R reference P2R reference 94310
Maker reference Maker reference 975707

975707-SCREW

More information

Quantity required : 4

JOINT FOURCHE

15
P2R reference P2R reference
Maker reference Maker reference 975705

JOINT FOURCHE
