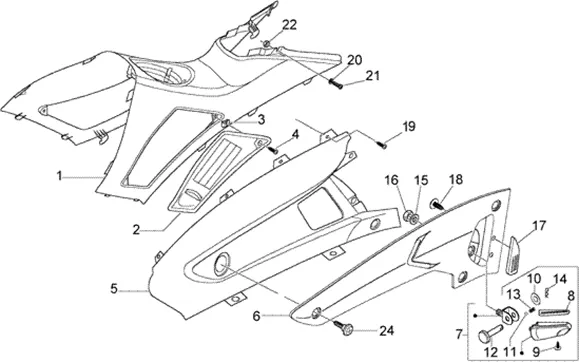

Châssis : T25 PARTIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/665/Nexus_500_1998-2005_T25.PNG)
1 |
975059000G-PROTECTOR CENTRAL More informationQuantity required : 1 |
||||||
|
2 |
975500000G-GRILLE GAU. More informationQuantity required : 1 |
||||||
|
2 |
975501000G - GRILLE DRT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
3 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/0/img/96280.jpg)
4 |
SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178606 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/4/0/img/68340.jpg)
5 |
SIDE PANEL LATERAL LEFT OEM PIAGGIO GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX-656665000G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/4/1/img/68341.jpg)
5 |
SIDE PANEL LATERAL RIGHT OEM PIAGGIO GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX-656666000G More informationQuantity required : 1 |
||||||
|
6 |
97549500BE - FLANC GAU. More informationQuantity required : 1 |
||||||
|
6 |
97549600BE - FLANC DR. More informationQuantity required : 1 |
||||||
|
7 |
654131000C - REPOSE PIED More informationQuantity required : 1 |
||||||
|
7 |
654132000C - REPOSE PIED More informationQuantity required : 1 |
||||||
|
8 |
654131000C - REPOSE PIED More informationQuantity required : 1 |
||||||
|
8 |
TAPIS REPOSE PIED |
||||||
|
9 |
975805 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
10 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/1/9/5/3/img/181953.JPG)
11 |
BILLE (6) OEM PIAGGIO COMMON A LA RANGE-2955916 More informationQuantity required : 2 |
||||||
|
11 |
BILLE (6) OEM PIAGGIO COMMON A LA RANGE-2955916 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/5/img/66285.jpg)
12 |
ROD PIVOT FOOTREST OEM PIAGGIO 50 NRG, STALKER-295593 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/5/6/1/img/162561.jpg)
13 |
SPRING OF PRESSURE DE BILLE PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-2955909 More informationQuantity required : 2 |
||||||
|
13 |
SPRING OF PRESSURE DE BILLE PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-2955909 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/5/img/66045.jpg)
14 |
CLIPS/GOUPILLE OEM PIAGGIO COMMON A LA RANGE-259933 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/2/img/66502.jpg)
15 |
WASHER SPRING (10. 5X21. 8X2) OEM PIAGGIO COMMON A LA RANGE-436698 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
15 |
WASHER EVENTAIL (10, 5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-012535 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/7/img/65477.jpg)
16 |
NUT (10 EP 5. 9) OEM PIAGGIO COMMON A LA RANGE-020210 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
16 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 2 |
||||||
|
17 |
621369-GASKET PROTECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/5/5/img/67655.jpg)
17 |
PROTECTOR RIGHT STEP FOOT OEM PIAGGIO 125-250-300-500 NEXUS GILERA-621370 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
18 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/5/img/67255.jpg)
19 |
SCREW BTR HEAD BOMBEE (8X16) OEM PIAGGIO COMMON A LA RANGE-582428 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
20 |
WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
21 |
SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/3/img/65813.jpg)
22 |
NUT (M12X1. 25) OEM PIAGGIO COMMON A LA RANGE-191962 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/4/img/67114.jpg)
23 |
NUT SHEET METAL (M8) OEM PIAGGIO COMMON A LA RANGE-575268 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/6/3/img/71063.jpg)
23 |
SCREW BTR HEAD BOMBEE (8X20) OEM PIAGGIO COMMON A LA RANGE-975855 More informationQuantity required : 6 |
||||||
|
24 |
SCREW BTR HEAD BOMBEE (8X20) OEM PIAGGIO COMMON A LA RANGE-975855 More informationQuantity required : 6 |
