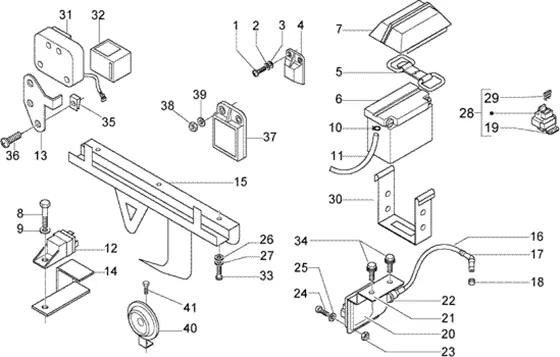

Vehicle Exploded View - GILERA NEXUS 500 1998-2005

	P2R reference	65392
	Maker reference	0157595

SCREW CRUCIFORME (6X20) OEM PIAGGIO COMMON A LA RANGE-015759

	P2R reference	65366
	Maker reference	0138805

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

	P2R reference	65416
	Maker reference	0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

	P2R reference	68816
	Maker reference	829121

DECODER "PIAGGIO GENUINE PART" 400 X8, X-EVO, 500 X9, BEVERLY/GILERA 500 NEXUS, 800 GP/APRILIA 850 SRV -829121-

	P2R reference	67289
	Maker reference	583921

SANGLE OEM PIAGGIO COMMON A LA RANGE-583921

	P2R reference	67292
	Maker reference	584033

584033-BATTERY 12V/14AH T YUASA YB14L-A2

	P2R reference	94296
	Maker reference	975624

975624 - COUVERCLE BATTERIE

	P2R reference	66117
	Maker reference	272836

SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836

	P2R reference	65664
	Maker reference	0783075

WASHER SPRING (6, 4X16X1) OEM PIAGGIO COMMON A LA RANGE-078307

	P2R reference	67822
	Maker reference	639082

639082-CLAMP

	P2R reference	81410
	Maker reference	580075

580075-HOSE RENIFLARD

	P2R reference	81937
	Maker reference	583529

583529 - DIODE

	P2R reference	67312
	Maker reference	584772

584772-CALIPER

	P2R reference	71055
	Maker reference	975749

975749-BRACKET RELE'

	P2R reference
	Maker reference	975512

SUPPORT

	P2R reference	65668
	Maker reference	0803415

CABLE HAUTE TENSION OEM PIAGGIO COMMON A TOUTE LA RANGE-080341

	P2R reference	66266
	Maker reference	293845

ANTIPARASITE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-293845

	P2R reference	66508
	Maker reference	436919

CAPUCHON ISOLANT ANTI PARASITE OEM PIAGGIO COMMON A LA RANGE-436919

	P2R reference	67263
	Maker reference	582690

RELAIS DE STARTER MOTOR OEM PIAGGIO 300-350-400-500 MP3, BEVERLY, 50-125 LIBERTY CORPORATE/APRILIA 1000-1100 RSV-4, TUONO V4, 900 DORSODURO, SHIVER/GILERA 500 NEXUS, FUOCO-582690

	P2R reference	146197
	Maker reference	1D001697R
	Replaced by référence 67263

RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 300-400-500 CC/APRILIA 900 SHIVER, DORSODURO, 1000 RSV-4, TUONO V4 -1D001697R

	P2R reference	67207
	Maker reference	58120R

BOBINE IGNITION MAXI SCOOTER OEM PIAGGIO 125 VESPA GTS, VESPA LX, 300 VESPA GTS, 250-400 MP3, X8, X-EVO, 500 X-9, GILERA 125-300 SR-MAX, 500 NEXUS/APRILIA 125-250-300-400-500 ATLANTIC-58120R

	P2R reference	82100
	Maker reference	584646

584646-BRACKET BOBINE

	P2R reference	65661
	Maker reference	0716715

CAPUCHON ISOLANT OEM PIAGGIO COMMON A LA RANGE-071671

	P2R reference	65451
	Maker reference	0200035

020003-NUT S02000300

	P2R reference	67279
	Maker reference	583236

SCREW CRUCIFORME (3X20) OEM PIAGGIO COMMON A LA RANGE-583236

	P2R reference	65351
	Maker reference	0125545

012554-WASHER

	P2R reference	63773
	Maker reference	0030385

WASHER PLATE (8. 4X18X2) OEM PIAGGIO COMMON A LA RANGE-003038

	P2R reference	65418
	Maker reference	0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

	P2R reference	146197
	Maker reference	1D001697R
	Replaced by référence 67263

RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 300-400-500 CC/APRILIA 900 SHIVER, DORSODURO, 1000 RSV-4, TUONO V4 -1D001697R

	P2R reference	67263
	Maker reference	582690

RELAIS DE STARTER MOTOR OEM PIAGGIO 300-350-400-500 MP3, BEVERLY, 50-125 LIBERTY CORPORATE/APRILIA 1000-1100 RSV-4, TUONO V4, 900 DORSODURO, SHIVER/GILERA 500 NEXUS, FUOCO-582690

	P2R reference	159543
	Maker reference	496404

496404 - FUSIBLE

	P2R reference	71039
	Maker reference	975587

975587-PLATE

	P2R reference	67301
	Maker reference	584509

SENSOR DE CHUTE/CAPEUR ANTI-BASCULEMEMENT OEM PIAGGIO COMMON A LA RANGE-584509

	P2R reference	66246
	Maker reference	291017

BRACKET ELASTIC CENTRE OEM PIAGGIO COMMON A LA RANGE-291017

	P2R reference	65645
	Maker reference	0311175

031117-BOLT S03111700

	P2R reference	72723
	Maker reference	434541

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

	P2R reference	72723
	Maker reference	B016777

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	72706
	Maker reference	B016426

SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426

	P2R reference	86148
	Maker reference	641288

CENTRE ELECTRONIC D'OUVERTURE DE SEAT OEM PIAGGIO 125-250-400 X-EVO 2007 >, X8 2004 > 2006, MP3 2007 >, 500 X9 2006 >/GILERA 500 NEXUS 2008 >, FUOCO 2007 >, 800 GP 2008 >-641288

	P2R reference	65984
	Maker reference	241937

241937 - ECROU

	P2R reference	65428
	Maker reference	0166865

WASHER PLATE (5, 2X18X1, 5) OEM PIAGGIO COMMON A LA RANGE-0166866

	P2R reference	67172
	Maker reference	58034R

AVERTISSEUR OEM PIAGGIO 125 MP3, VESPA LX, PRIMAVERA, SPRINT/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX-58034R

	P2R reference	72723
	Maker reference	434541

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

	P2R reference	72723
	Maker reference	B016777

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777
