Vehicle Exploded View - GILERA NEXUS 500 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

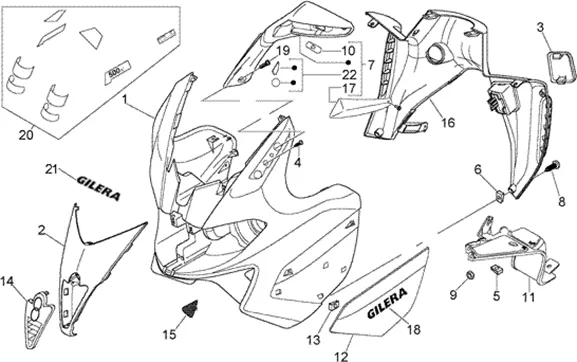

Châssis : T23 BOUCLIER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/665/Nexus_500_1998-2005_T23.PNG)
1 |
624503-LEG SHIELD AV UNPAINTED More informationQuantity required : 1 |
|||||||||
|
1 |
97504600E1 - TABLIER More informationQuantity required : 1 |
|||||||||
|
1 |
97504600R7 - TABLIER More informationQuantity required : 1 |
|||||||||
|
2 |
97505200E1 - ENCADREMENT More informationQuantity required : 1 |
|||||||||
|
3 |
975674000G-COVER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
4 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 3 |
|||||||||
|
5 |
975826-PLATE FOR REST-FEET More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
6 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/3/5/8/img/95358.jpg)
7 |
LEFT MIRROR OEM PIAGGIO GILERA 500 NEXUS 1998 > 2005-CM026201 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/3/5/9/img/95359.jpg)
7 |
RIGHT MIRROR OEM PIAGGIO GILERA 500 NEXUS 1998 > 2005-CM026202 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/6/img/66036.jpg)
8 |
SCREW AUTOTARAUDEUSE (4, 2X25) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259372 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
9 |
NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
10 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/3/6/img/71036.jpg)
11 |
FOOTREST PILOTE LEFT OEM PIAGGIO GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX-975502000G More informationQuantity required : 1 |
|||||||||
|
11 |
975503000G-FOOTREST D * More informationQuantity required : 1 |
|||||||||
|
12 |
975048000G-SIDE PANEL GAU. More informationQuantity required : 1 |
|||||||||
|
12 |
975049000G-SIDE PANEL GRO. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/2/8/3/img/74283.jpg)
13 |
WASHER/CLIPS DE BLOCAGE OEM PIAGGIO COMMON A TOUTE LA RANGE-085508 More informationQuantity required : 12 |
|||||||||
|
14 |
975053000G - GRILLE More informationQuantity required : 1 |
|||||||||
|
15 |
975725-GRILLE GAU. More informationQuantity required : 1 |
|||||||||
|
15 |
975726-GRILLE DRO. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/7/4/img/67774.jpg)
16 |
COUNTER SHIELD "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS -624518000G More informationQuantity required : 1 |
|||||||||
|
17 |
LENS FOR FLASHER-FRONT- RIGHT- SUR RETROVISEUR "PIAGGIO GENUINE PART" 125-250-500 X9 EVOLUTION -638714- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/5/5/4/img/85554.jpg)
17 |
LENS FOR FLASHER-ON LEFT MIRROR - "PIAGGIO GENUINE PART" 125-250-500 X9 EVOLUTION -638713 More informationQuantity required : 1 |
|||||||||
|
17 |
622727 - CABOCHON CLIG DRT NEXUS More informationQuantity required : 1 |
|||||||||
|
17 |
CABOCHON DE FRONT LEFT INDICATOR OEM PIAGGIO GILERA 125-250 NEXUS-622728 More informationQuantity required : 1 |
|||||||||
|
18 |
975720 - SIGLE "GILERA" More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
19 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 4 |
|||||||||
|
20 |
975787 - KIT DECO NEXUS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/9/8/3/img/87983.jpg)
21 |
653756-STICKER " GILERA " More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/6/0/5/img/84605.jpg)
22 |
CAP FOR LEFT MIRROR OEM PIAGGIO 500 NEXUS GILERA 2005 <-622387 More informationQuantity required : 1 |
|||||||||
|
22 |
622388 - BOUCHON POUR RETROVISEUR More informationQuantity required : 1 |
|||||||||
