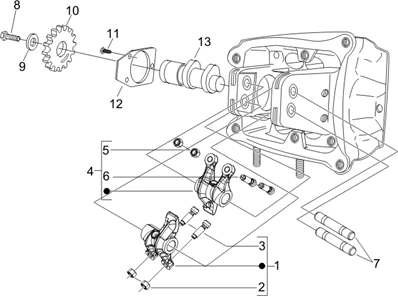

Moteur : 01.11 GROUPE SUPPORT BALANCIERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/21/MP3_400_ie_2007-2008_01.11.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/7/6/img/68576.jpg)
1 |
EXHAUST ROCKER "PIAGGIO GENUINE PART" 400-500 BEVERLY, MP3, X8, X9, X-EVO/GILERA NEXUS, FUOCO, GP 800/APRILIA 500 ATLANTIC -8260285 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/7/img/66667.jpg)
2 |
484819 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/3/1/img/68731.jpg)
3 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82817R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/7/5/img/68575.jpg)
4 |
INTAKE CPL ROCKER "PIAGGIO GENUINE PART" 400-500 BEVERLY, MP3, X8, X9, X-EVO/GILERA NEXUS, FUOCO, GP 800/APRILIA 500 ATLANTIC -8260275 More informationQuantity required : 1 |
||||||
|
5 |
484819 - ECROU More informationQuantity required : 2 |
||||||
|
6 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82817R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/2/2/img/68722.jpg)
7 |
ROCKER ARM SHAFT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 400-500 CC -827991 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/7/img/65837.jpg)
8 |
1A000425 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/4/5/img/69345.jpg)
9 |
845316 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/0/9/img/70709.jpg)
10 |
TIMING SYSTEM GEAR "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS 500 CC -879185 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/4/8/img/72648.jpg)
11 |
SCREW - (5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER + MOTORBIKE -B014598 More informationQuantity required : 3 |
||||||
12 |
831167 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/1/4/6/img/93146.jpg)
13 |
CAMSHAFT "PIAGGIO GENUINE PART" 400 BEVERLY, MP3 -8725265- More informationQuantity required : 1 |
||||||
|
19 |
845316 - RONDELLE More informationQuantity required : 1 |
All the exploded views of this vehicle
-
