Vehicle Exploded View - PIAGGIO MP3 400 ie 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

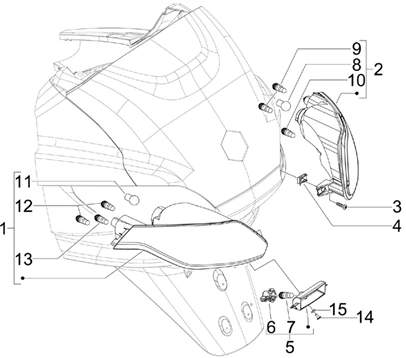

Installation électrique : 06.04 ECLAIRAGES ARRIÈRE - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/21/MP3_400_ie_2007-2008_06.04.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/3/3/3/img/86333.jpg)
1 |
TAILLIGHT- LEFT WITH FLASHER "PIAGGIO GENUINE PART" 125-250-400 MP3 2007> 300-500 MP3 2010> -642168 More informationQuantity required : 1 |
||||||
|
1 |
TAILLIGHT- LEFT WITH FLASHER "PIAGGIO GENUINE PART" 125-250-400 MP3 2007> 300-500 MP3 2010> -642168 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/3/3/2/img/86332.jpg)
2 |
TAILLIGHT- RIGHT WITH FLASHER "PIAGGIO GENUINE PART" 125-250-400 MP3 2007>, 300-500 MP3 2010> -642167 More informationQuantity required : 1 |
||||||
|
2 |
TAILLIGHT- RIGHT WITH FLASHER "PIAGGIO GENUINE PART" 125-250-400 MP3 2007>, 300-500 MP3 2010> -642167 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
3 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
5 |
640595 - FEU AR. More informationQuantity required : 1 |
||||||
|
6 |
CAPUCHON |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
7 |
LIGHT BULB 12V 5W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -2920225 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/8/img/65798.jpg)
8 |
LIGHT BULB 12V/10W "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV -181746 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/3/4/img/67234.jpg)
9 |
LIGHT BULB - INDICATOR LIGHT "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOOTER RANGE -581904 More informationQuantity required : 2 |
||||||
|
10 |
LIGHT BULB 12V 5W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -2920225 More informationQuantity required : 1 |
||||||
|
11 |
LIGHT BULB 12V/10W "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV -181746 More informationQuantity required : 1 |
||||||
|
12 |
LIGHT BULB - INDICATOR LIGHT "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOOTER RANGE -581904 More informationQuantity required : 2 |
||||||
|
13 |
LIGHT BULB 12V 5W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -2920225 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/8/img/66058.jpg)
14 |
267115 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
15 |
003054 - RONDELLE S00305400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/1/img/67161.jpg)
16 |
577594 - COLLIER AUTOADHESIVE More informationQuantity required : 1 |
