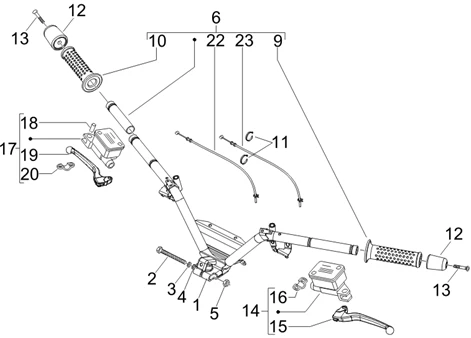

Guidon/direction : 03.06 GUIDON - MAÎTRE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/21/MP3_400_ie_2007-2008_03.06.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/6/4/8/img/89648.jpg)
1 |
HANDLEBAR "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -6570735 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/9/4/img/68294.jpg)
2 |
655554 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
3 |
178790 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
4 |
012543 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
5 |
015330 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/7/1/9/img/95719.jpg)
6 |
THROTTLE HANDLE "PIAGGIO GENUINE PART" 400 MP3 2008>2010 -CM079714 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/9/img/66099.jpg)
9 |
LEFT HANDLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271452 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/0/img/66100.jpg)
10 |
RIGHT HANDLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271453 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
11 |
257134 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/4/3/6/img/88436.jpg)
12 |
BAR ENDS - CHROME "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 DROIT OU GAUCHE -654603 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/3/img/67143.jpg)
13 |
SCREW - FOR BAR ENDS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -576836 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/6/6/8/img/95668.jpg)
14 |
REAR BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" 125-250-400 MP3, 125-250 X8 -CM076307- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/3/6/img/67436.jpg)
15 |
LEFT/RIGHT BRAKE LEVER - "PIAGGIO GENUINE PART" 125-250-400-500 MP3, BEVERLY, X-EVO/GILERA 50-125 DNA, 125-250-300 NEXUS, 500 FUOCO (HENG-TONG) -600475 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/9/0/4/img/82904.jpg)
16 |
MASTER CYLINDER BRACKET "PIAGGIO GENUINE PART" 125-250 X-EVO, X8, X9, 125-250-300-400-500 MP3 -600476- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/6/7/2/img/95672.jpg)
17 |
CM077402 - CYLINDRE IDR. More informationQuantity required : 1 |
||||||
18 |
497141 - VIS POUR LEVIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/6/4/2/img/86642.jpg)
19 |
RIGHT/LEFT BRAKE LEVER - "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, BEVERLY, 400 X-EVO/GILERA 500 NEXUS, FUOCO (BREMBO) -646829 More informationQuantity required : 1 |
||||||
|
20 |
497344 - BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/4/3/img/86943.jpg)
22 |
OPENING THROTTLE CABLE KIT "PIAGGIO GENUINE PART" 400-500 MP3 -649340 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/4/4/img/86944.jpg)
23 |
THROTTLE CLOSING TRANSMISSION CABLE "PIAGGIO GENUINE PART"O 400-500 MP3 -649341 More informationQuantity required : 1 |
