Vehicle Exploded View - PIAGGIO MP3 400 ie 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

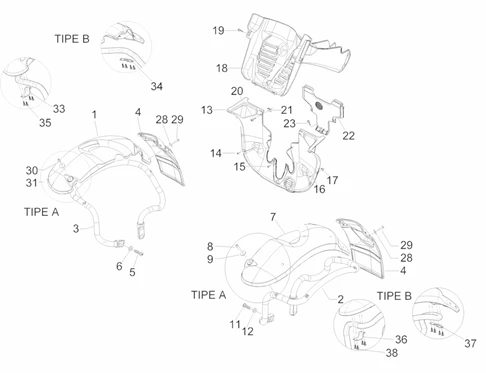

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/21/MP3_400_ie_2007-2008_02.33.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/2/2/0/img/149220.jpg)
1 |
1B004134 - GARDE BOUE AV. D. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/3/9/9/img/146399.jpg)
1 |
FRONT MUDGUARD- RIGHT "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -1B004096 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/3/1/img/86931.jpg)
2 |
MUDGUARD SUPPORT- FRONT LEFT "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -649257- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/2/3/9/img/87239.jpg)
2 |
MUDGUARD SUPPORT- FRONT LEFT (TYPE B) "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -651228- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/3/7/img/86937.jpg)
3 |
MUDGUARD SUPPORT- FRONT RIGHT "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -649284- More informationQuantity required : 1 |
||||||
3 |
MUDGUARD SUPPORT- FRONT RIGHT (TYPE B) "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -665508- More informationQuantity required : 1 |
||||||
|
4 |
MUD FLAP - FRONT "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -665963- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/6/6/img/67066.jpg)
5 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -564606 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
6 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 2 |
||||||
|
7 |
667011 - GARDE BOUE AV.GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/3/9/8/img/146398.jpg)
7 |
FRONT MUDGUARD- LEFT "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -1B004095 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/1/0/img/69210.jpg)
8 |
842041 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/6/img/68676.jpg)
9 |
EXHAUST FLAT WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -827526 More informationQuantity required : 4 |
||||||
|
11 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -564606 More informationQuantity required : 2 |
||||||
|
12 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/7/9/0/img/84790.jpg)
13 |
FRONT WHEEL COMPARTMENT "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -623255 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
14 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
14 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/8/img/66038.jpg)
15 |
259577 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
16 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
17 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/8/3/7/img/75837.jpg)
18 |
WHEEL HOUSING COVER "PIAGGIO GENUINE PART" 125-250-400 2007>, 300-500 MP3 2010>/GILERA 500 FUOCO 2007> -1B001210 More informationQuantity required : 1 |
||||||
|
19 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 2 |
||||||
|
20 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 2 |
||||||
|
20 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 4 |
||||||
|
21 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/6/4/7/img/90647.jpg)
22 |
672142 - COUVERCLE LOGEM.ROUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
23 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
23 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201 More informationQuantity required : 1 |
||||||
|
28 |
EXHAUST FLAT WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -827526 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/7/3/img/68173.jpg)
29 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -651014 More informationQuantity required : 8 |
||||||
|
30 |
842041 - VIS More informationQuantity required : 4 |
||||||
|
31 |
EXHAUST FLAT WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -827526 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/2/3/7/img/87237.jpg)
33 |
FRONT BRACKET FOR FRONT MUDGUARD "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO -651192 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/2/4/4/img/87244.jpg)
34 |
REAR BRACKET FOR FRONT MUDGUARD "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO -651271 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
35 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498 More informationQuantity required : 8 |
||||||
|
36 |
FRONT BRACKET FOR FRONT MUDGUARD "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO -651192 More informationQuantity required : 1 |
||||||
|
37 |
REAR BRACKET FOR FRONT MUDGUARD "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO -651271 More informationQuantity required : 1 |
||||||
|
38 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498 More informationQuantity required : 8 |
