Vehicle Exploded View - PIAGGIO MP3 400 ie 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

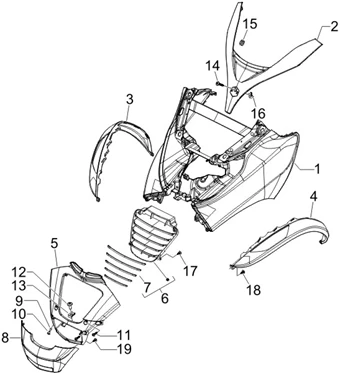

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/21/MP3_400_ie_2007-2008_02.26.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/9/5/7/img/87957.jpg)
1 |
FRONT SHIELD - "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 RAW TO BE PAINT -653704- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/9/6/2/img/87962.jpg)
1 |
FRONT SHIELD - "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 BLUE 222/A -65370400DE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/9/6/3/img/87963.jpg)
1 |
FRONT SHIELD - "PIAGGIO GENUINE PART" 125-250-300-400 MP3 GREY 711/B -65370400EU- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/9/6/4/img/87964.jpg)
1 |
FRONT SHIELD - "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 GREY 713/B -65370400EV More informationQuantity required : 1 |
|||||||||
1 |
65370400F2 - TABLIER More informationQuantity required : 1 |
|||||||||
|
1 |
65370400ND - TABLIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/9/7/0/img/87970.jpg)
1 |
FRONT SHIELD - "PIAGGIO GENUINE PART" 125-250-400 MP3 RED 824/A -65370400RE More informationQuantity required : 1 |
|||||||||
|
1 |
62306000RP - TABLIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/0/8/4/img/85084.jpg)
2 |
FRONT OPEN PANEL CLOSURE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 RAW TO BE PAINT -624432- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/7/0/6/2/img/167062.jpg)
2 |
FRONT OPEN PANEL CLOSURE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 BLUE 222/A -62443260DE More informationQuantity required : 1 |
|||||||||
|
2 |
62443200EU - CACHE SUP. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/0/9/1/img/85091.jpg)
2 |
FRONT OPEN PANEL CLOSURE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 GREY 713/B -62443200EV- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/0/9/3/img/85093.jpg)
2 |
FRONT OPEN PANEL CLOSURE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 GREY 738/A -62443200F2 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/1/0/0/img/85100.jpg)
2 |
FRONT OPEN PANEL CLOSURE "PIAGGIO GENUINE PART" 125-250-400 MP3 BLACK GRAPHITE 79/A -62443200ND- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/1/0/5/img/85105.jpg)
2 |
FRONT OPEN PANEL CLOSURE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 RED 806/A -62443200RE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/1/0/7/img/85107.jpg)
2 |
FRONT OPEN PANEL CLOSURE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 RED 830/A -62443200RP More informationQuantity required : 1 |
|||||||||
|
2 |
FRONT OPEN PANEL CLOSURE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 BLUE 222/A -62443260DE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/1/2/1/img/85121.jpg)
3 |
FRONT RIGHT SIDE EDGE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -624436000C More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/1/2/0/img/85120.jpg)
4 |
FRONT LEFT SIDE EDGE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -624435000C More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/1/1/9/img/85119.jpg)
5 |
62443300RE - CACHE INF. More informationQuantity required : 1 |
|||||||||
|
5 |
CACHE INF. |
|||||||||
|
5 |
624433 - CACHE INF. More informationQuantity required : 1 |
|||||||||
|
5 |
62443300DE - CACHE INF. More informationQuantity required : 1 |
|||||||||
|
5 |
62443300EU - CACHE INF. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/1/1/6/img/85116.jpg)
5 |
HORN COVER - LOWER "PIAGGIO GENUINE PART" 125-250-400 MP3 2007>2008 GREY 713/B -62443300EV More informationQuantity required : 1 |
|||||||||
|
5 |
62443300F2 - CACHE INF. More informationQuantity required : 1 |
|||||||||
|
5 |
HORN COVER - LOWER "PIAGGIO GENUINE PART" 125-250-400 MP3 2007>2008 BLACK 79/A -62443300ND- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/4/0/0/img/87400.jpg)
6 |
652821 - GRILLE RADIATEUR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/3/8/8/img/87388.jpg)
7 |
STICKER FOR RADIATOR GRILLE"PIAGGIO GENUINE PART" 125-250-400 MP3 -652799- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/1/2/5/img/85125.jpg)
8 |
LOWER FRONT SHIELD PART "PIAGGIO GENUINE PART" 125-250-400 MP3 -624442000C More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/2/2/5/img/85225.jpg)
9 |
624457 - ENTRETOISE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
10 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
11 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/0/img/96280.jpg)
12 |
SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 X16) -CM178606 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
13 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
14 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/0/img/65850.jpg)
15 |
SILENTBLOC FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1B000888 More informationQuantity required : 4 |
|||||||||
|
16 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 1 |
|||||||||
|
17 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 2 |
|||||||||
|
18 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 4 |
|||||||||
|
19 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 3 |
|||||||||
All the exploded views of this vehicle
-
