Vehicle Exploded View - PIAGGIO MP3 400 ie 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

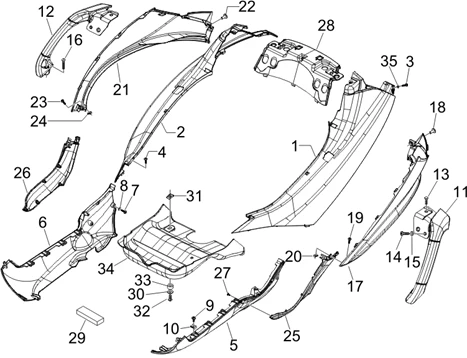

Châssis - parties plastiques - carrosseries : 02.32 COUVERTURES LATERALES - SPOILER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/21/MP3_400_ie_2007-2008_02.32.PNG)
1 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 2008>2013 GREY 713/B -62444660EV- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/1/3/6/img/85136.jpg)
1 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 RAW TO BE PAINTED -624446- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/1/4/2/img/85142.jpg)
1 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 2008>2013 BLUE 222/A -62444660DE More informationQuantity required : 1 |
||||||
|
1 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 GREY 711/B -62444660EU- More informationQuantity required : 1 |
||||||
|
1 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 2008>2013 GREY 713/B -62444660EV- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/1/4/6/img/85146.jpg)
1 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 2008>2013 GREY 738/A -62444600F2 More informationQuantity required : 1 |
||||||
|
1 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 RAW TO BE PAINTED -624446- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/1/5/7/img/85157.jpg)
1 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 125-250-400 MP3 RED 806/A -62444600RE- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/1/5/8/img/85158.jpg)
1 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 RED 824/A -62444600RM More informationQuantity required : 1 |
||||||
|
1 |
COUVRE CHASSIS |
||||||
|
2 |
LATERAL AR. DRO. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/1/6/1/img/85161.jpg)
2 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 RAW TO BE PAINT -624447 More informationQuantity required : 1 |
||||||
|
2 |
AILE/FLANC ARRIERE DROITE ORIGINE PIAGGIO 125-250-300-400-500 MP3 2008>2013 BLEU 222/A -62444760DE- More informationQuantity required : 1 |
||||||
|
2 |
62444700EU - LATERAL AR. DRO. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/1/6/9/img/85169.jpg)
2 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 GREY 713/B -62444700EV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/1/7/1/img/85171.jpg)
2 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 GREY 738/A -62444700F2 More informationQuantity required : 1 |
||||||
|
2 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 2008>2013 BLACK 79/A -62444760ND- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/1/8/2/img/85182.jpg)
2 |
REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 RED 806/A -62444700RE More informationQuantity required : 1 |
||||||
|
2 |
LATERAL AR. DRO. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
3 |
SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
4 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 8 |
||||||
|
5 |
62306900RP - SPOILER GAU More informationQuantity required : 1 |
||||||
|
5 |
LEFT SPOILER- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 RAW TO BE PAINT -656141 More informationQuantity required : 1 |
||||||
|
5 |
LEFT SPOILER- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 BLUE 222/A -65614100DE- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/0/7/9/img/89079.jpg)
5 |
LEFT SPOILER- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 GREY 711/B -65614100EU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/0/8/0/img/89080.jpg)
5 |
LEFT SPOILER- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 GREY 713/B -65614100EV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/0/8/2/img/89082.jpg)
5 |
LEFT SPOILER- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 GREY 738/A -65614100F2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/0/8/9/img/89089.jpg)
5 |
LEFT SPOILER- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 BLACK 79/A -65614100ND More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/0/9/3/img/89093.jpg)
5 |
LEFT SPOILER- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 RED 806/A -65614100RE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/1/0/1/img/89101.jpg)
6 |
RIGHT SPOILER- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 BLUE 222/A -6561420 0DE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/1/0/3/img/89103.jpg)
6 |
RIGHT SPOILER- "PIAGGIO GENUINE PART" 125-250-300-400 MP3 GREY 711/B -65614200EU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/1/0/4/img/89104.jpg)
6 |
RIGHT SPOILER- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 GREY 713/B -65614200EV- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/1/0/6/img/89106.jpg)
6 |
RIGHT SPOILER- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 GREY 738/A -65614200F2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/1/1/3/img/89113.jpg)
6 |
RIGHT SPOILER- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 BLACK 79/A -65614200ND More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/1/1/7/img/89117.jpg)
6 |
RIGHT SPOILER- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 RED 806/A -65614200RE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/0/9/6/img/89096.jpg)
6 |
RIGHT SPOILER- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 RAW TO BE PAINT -656142 More informationQuantity required : 1 |
||||||
|
6 |
SPOILER DR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
7 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/1/img/65371.jpg)
8 |
013963 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
9 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
10 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 8 |
||||||
|
11 |
62445200EQ - POIGNEE GAU-COULEUR GRIS ANTRASITE More informationQuantity required : 1 |
||||||
|
12 |
62445300EQ - POIGNEE DROITE - COULEUR GRIS ANTRASITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/9/img/65649.jpg)
13 |
031122 - BOULON FIX BRAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/9/img/73369.jpg)
14 |
CM179304 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
15 |
003058 - RONDELLE S00305800 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
16 |
031119 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/1/8/5/img/85185.jpg)
17 |
LOWER SIDE PANEL - LEFT - "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -624448000C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
18 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 1 |
||||||
|
19 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 1 |
||||||
|
20 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/1/8/6/img/85186.jpg)
21 |
LOWER SIDE PANEL - RIGHT- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -624449000C More informationQuantity required : 1 |
||||||
|
22 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 1 |
||||||
|
23 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 1 |
||||||
|
24 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/6/6/1/img/87661.jpg)
25 |
LEFT SPOILER CLOSING "PIAGGIO GENUINE PART" PIAGGIO 125-250-300-400-500 MP3 -653201400C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/1/8/8/img/85188.jpg)
26 |
RIGHT SPOILER CLOSING "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -624451000C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
27 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/9/7/9/img/88979.jpg)
28 |
655807 - COUVRE FLANC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/8/1/img/67281.jpg)
29 |
583310 - COUSSINET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/8/img/65368.jpg)
30 |
013950 - RONDELLE S01395000 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
31 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
32 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/5/2/img/67752.jpg)
33 |
624085 - ENTRETOISE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/7/9/7/img/87797.jpg)
34 |
LOWER SPOILER CLOSURE "PIAGGIO GENUINE PART" 125-300-400-500 MP3/GILERA 500 FUOCO -653293 More informationQuantity required : 1 |
||||||
|
35 |
654445 - JOINT More informationQuantity required : 2 |
