Vehicle Exploded View - PIAGGIO MP3 400 ie 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

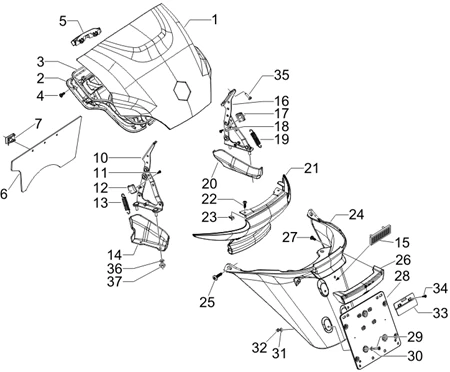

Châssis - parties plastiques - carrosseries : 02.37 COUVERCLE ARRIÈRE - PARE-BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/21/MP3_400_ie_2007-2008_02.37.PNG)
1 |
62445500AF - ABATTANT AR More informationQuantity required : 1 |
|||||||||
|
1 |
BOOT COVER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 BLUE 222/A -62445500DE- More informationQuantity required : 1 |
|||||||||
|
1 |
62445500AF - ABATTANT AR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/2/0/8/img/85208.jpg)
1 |
REAR BOOT COVER "PIAGGIO GENUINE PART" 125-250-400 MP3 2006>2009 GREY 713/B -62445500EV- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/2/1/0/img/85210.jpg)
1 |
REAR BOOT COVER "PIAGGIO GENUINE PART" 125-250-400 MP3 2006>2009 GREY 738/A -62445500F2 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/2/1/7/img/85217.jpg)
1 |
REAR BOOT COVER "PIAGGIO GENUINE PART" 125-250-400 MP3 2006>2009 BLACK 79/A -62445500ND- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/2/2/1/img/85221.jpg)
1 |
REAR BOOT COVER "PIAGGIO GENUINE PART" 125-250-400 MP3 2006>2009 RED 806/A -62445500RE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/2/2/2/img/85222.jpg)
1 |
REAR BOOT COVER "PIAGGIO GENUINE PART" 125-250-400 MP3 2006>2009 RED 824/A -62445500RM More informationQuantity required : 1 |
|||||||||
|
1 |
|
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/1/1/1/img/88111.jpg)
2 |
BOOT COUNTER FLAP "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -654036 More informationQuantity required : 1 |
|||||||||
|
3 |
561449 - JOINT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
4 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498 More informationQuantity required : 9 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/9/9/9/img/83999.jpg)
5 |
621347 - COLL. JOINT More informationQuantity required : 1 |
|||||||||
|
6 |
624863 - PARE-BOUE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/5/9/img/65959.jpg)
7 |
LOCKING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -230359 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/0/7/6/img/88076.jpg)
10 |
COMPLETE LEFT HINGE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -653893 More informationQuantity required : 1 |
|||||||||
|
11 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498 More informationQuantity required : 1 |
|||||||||
|
12 |
656083 - TAMPON More informationQuantity required : 1 |
|||||||||
|
13 |
653896 - RESSORT More informationQuantity required : 1 |
|||||||||
|
14 |
623172 - COUVERCLE CHARNIERE GAU More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/5/6/6/img/85566.jpg)
15 |
638745 - CATADIOPTRE AR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/0/7/7/img/88077.jpg)
16 |
COMPLETE RIGHT HINGE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -653895 More informationQuantity required : 1 |
|||||||||
|
17 |
656083 - TAMPON More informationQuantity required : 1 |
|||||||||
|
18 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498 More informationQuantity required : 1 |
|||||||||
|
19 |
653896 - RESSORT More informationQuantity required : 1 |
|||||||||
|
20 |
623173 - COUVERCLE CHARNIERE DR. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/8/0/3/img/90803.jpg)
21 |
FAIRING REAR CLOSING "PIAGGIO GENUINE PART" 300-400-500 MP3 -672456000C More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/1/9/9/img/85199.jpg)
21 |
REAR FAIRINGS CLOSING "PIAGGIO GENUINE PART" 125-250-300-400 MP3 -624454000C More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
22 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
23 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/3/0/0/img/87300.jpg)
24 |
MUDGUARD - REAR "PIAGGIO GENUINE PART" 400-500 MP3 2008> -652628000C More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
25 |
SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836 More informationQuantity required : 2 |
|||||||||
|
26 |
652629000C - ENTRETOISE More informationQuantity required : 1 |
|||||||||
|
27 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/2/2/img/67322.jpg)
28 |
LICENSE PLATE HOLDER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -584884 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
29 |
015996 - VIS More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
30 |
WASHER (4,2X7,6X0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
31 |
013763 - PLAQUETTE S01376300 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
32 |
020104 - ECROU S02010400 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/2/1/img/67321.jpg)
33 |
NUMBER PLATE EXTENSION "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -584877- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/4/img/66074.jpg)
34 |
268596 - VIS More informationQuantity required : 4 |
|||||||||
|
35 |
SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
36 |
013880 - RONDELLE More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/1/img/65941.jpg)
37 |
219277 - BOULON More informationQuantity required : 4 |
|||||||||
