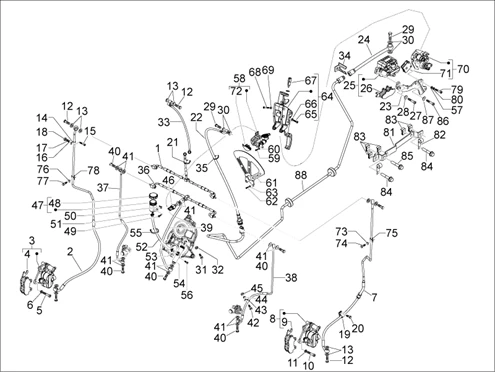

Vehicle Exploded View - PIAGGIO MP3 400 ie 2007-2008

	P2R reference	82152
	Maker reference	58516R

58516R - TUYAU A FREIN

	P2R reference	174667
	Maker reference	1C005539

1C005539 - BRAKE HOSE RIGHT (LINK -BRAKE CALIPER)

	P2R reference	174667
	Maker reference	601742

1C005539 - BRAKE HOSE RIGHT (LINK -BRAKE CALIPER)

	P2R reference	95511
	Maker reference	CM065707

FRONT BRAKE CALIPER- RIGHT HENG-TONG "PIAGGIO GENUINE PART" 125-250-300-400-500-MP3/GILERA 500 FUOCO -CM065707

	P2R reference	68422
	Maker reference	666574

BRAKE PADS - "PIAGGIO GENUINE PART" 125-250-400 MP3 2006> FRONT, 50-125 VESPA LX FRONT, 50-125 VESPA S FRONT, 50-125 LIBERTY FRONT, 50 NRG/GILERA 50 RUNNER REAR, 500 FUOCO REAR (PAIR) (GRIMECA) -666574

	P2R reference	67332
	Maker reference	597150

SCREW - (8X25) FOR CALIPER OR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE -597150

	P2R reference	68491
	Maker reference	709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047

	P2R reference	174665
	Maker reference	1C005540

1C005540 - BRAKE HOSE LEFT (LINK-BRAKE CALIPER)

	P2R reference	174665
	Maker reference	601740

1C005540 - BRAKE HOSE LEFT (LINK-BRAKE CALIPER)

	P2R reference	95512
	Maker reference	CM065708

FRONT BRAKE CALIPER- LEFT HENG-TONG "PIAGGIO GENUINE PART" 125-250-300-400-500-MP3/GILERA 500 FUOCO -CM065708

	P2R reference	68422
	Maker reference	666574

BRAKE PADS - "PIAGGIO GENUINE PART" 125-250-400 MP3 2006> FRONT, 50-125 VESPA LX FRONT, 50-125 VESPA S FRONT, 50-125 LIBERTY FRONT, 50 NRG/GILERA 50 RUNNER REAR, 500 FUOCO REAR (PAIR) (GRIMECA) -666574

	P2R reference	67332
	Maker reference	597150

SCREW - (8X25) FOR CALIPER OR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE -597150

	P2R reference	68491
	Maker reference	709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047

	P2R reference	66050
	Maker reference	265451

SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451

	P2R reference	65723
	Maker reference	127927

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927

	P2R reference	69377
	Maker reference	845978

845978 - COLLIER

	P2R reference	78329
	Maker reference	319538

319538 - VIS

	P2R reference	63838
	Maker reference	0069665

006966 - RONDELLE S00696600

	P2R reference	65368
	Maker reference	0139505

013950 - RONDELLE S01395000

	P2R reference	149096
	Maker reference	241936

241936 - ECROU

	P2R reference	83058
	Maker reference	601970

601970 - COLLIER

	P2R reference	70959
	Maker reference	969296

969296 - BOULON

	P2R reference	66017
	Maker reference	257134

257134 - COLLIER

	P2R reference	83038
	Maker reference	601737

601737 - TUYAU A FREIN

	P2R reference	86875
	Maker reference	648845

SUPPORT-FOR REAR BRAKE CALIPER "PIAGGIO GENUINE PART" 300-350-400-500 MP3 -648845

	P2R reference	86950
	Maker reference	649377

REAR BRAKE HOSE "PIAGGIO GENUINE PART" 400-500 MP3/GILERA 500 FUOCO -649377

	P2R reference	72981
	Maker reference	CM068304

REAR BRAKE CALIPER "PIAGGIO GENUINE PART" 300-400 MP3, 400 BEVERLY, X8, X-EVO/GILERA 500 NEXUS -CM068304

	P2R reference	68004
	Maker reference	647078

BRAKE PADS - "PIAGGIO GENUINE PART" 125 X-EVO FRONT, X8 FRONT, X9 FRONT, 125-300 VESPA GTS FRONT, 400 X-EVO FRONT+REAR, 125 FLY FRONT/GILERA 800 GP REAR/APRILIA 854 SRV REAR, 125-300 SR-MAX FRONT+REAR (PAIR) (HENG-TONG) -647078

	P2R reference	68038
	Maker reference	647799

647799 - VIS

	P2R reference	68491
	Maker reference	709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047

	P2R reference	66050
	Maker reference	265451

SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451

	P2R reference	65723
	Maker reference	127927

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927

	P2R reference	73817
	Maker reference	0156505

015650 - VIS S01565000

	P2R reference	73877
	Maker reference	0200045

020004 - ECROU S02000400

	P2R reference	82153
	Maker reference	58517R

58517R - TUYAU A FREIN

	P2R reference	65734
	Maker reference	136916

136916 - PLAQUE

	P2R reference	66017
	Maker reference	257134

257134 - COLLIER

	P2R reference	82153
	Maker reference	58517R

58517R - TUYAU A FREIN

	P2R reference	83042
	Maker reference	601743

601743 - CANALISATION FREIN DR.

	P2R reference	83040
	Maker reference	601741

601741 - TUYAU A FREIN GAU.

	P2R reference	83044
	Maker reference	601781

BRAKE PIPE-FROM MAIN MASTER CYLINDER TO PRESSURE UNIT "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3/GILERA 500 FUOCO -601781

	P2R reference	66050
	Maker reference	265451

SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451

	P2R reference	65723
	Maker reference	127927

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927

	P2R reference	70959
	Maker reference	969296

969296 - BOULON

	P2R reference	111477
	Maker reference	D9004461193
	Replaced by référence 158255

D9004461193 - COLLIER

	P2R reference	65368
	Maker reference	0139505

013950 - RONDELLE S01395000

	P2R reference	149096
	Maker reference	241936

241936 - ECROU

	P2R reference	85926
	Maker reference	640295

OIL PRESSURE SWITCH "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -640295

	P2R reference	77469
	Maker reference	274598

MAIN BRAKE FLUID TANK "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/APRILIA 500 FUOCO -274598

	P2R reference	79623
	Maker reference	498431

498431 - BOUCHON RESERV LOOCK

	P2R reference	66035
	Maker reference	259349

SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349

	P2R reference	72925
	Maker reference	CM017409

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017409

	P2R reference	72874
	Maker reference	CM001913

COLLIER (12-22MM) SERRAGE TUBE ORIGINE PIAGGIO COMMUN A LA GAMME -CM001913

	P2R reference	72892
	Maker reference	CM002905

CM002905 - COLLIER EX 194011

	P2R reference	86974
	Maker reference	649563

649563 - TUBE JONCTION

	P2R reference	72863
	Maker reference	CM001901

CM001901 - COLLIER

	P2R reference	72893
	Maker reference	CM002907

CM002907 - COLLIER

	P2R reference	86871
	Maker reference	648798

BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3 -648798

	P2R reference	65742
	Maker reference	145298

LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298

	P2R reference	72720
	Maker reference	B016774

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

	P2R reference	72720
	Maker reference	414837

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

	P2R reference	68491
	Maker reference	709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047

	P2R reference	86891
	Maker reference	648968

648968 - PINCES FREIN

	P2R reference	86904
	Maker reference	649090

MECANICAL BRAKE PIN "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -649090

	P2R reference	67371
	Maker reference	598921

SCREW - BRAKE CALIPER FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -598921

	P2R reference	68491
	Maker reference	709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047

	P2R reference	89926
	Maker reference	665588

ANTI-TILTING DISC "PIAGGIO GENUINE PART" MP3 125-250-300-400-500 - 665588

	P2R reference	67372
	Maker reference	599208

599208 - VIS

	P2R reference	68491
	Maker reference	709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047

	P2R reference	86956
	Maker reference	6494205

PARKING BRAKE LEVER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO -6494205

	P2R reference	70918
	Maker reference	959559

959559 - VIS

	P2R reference	65414
	Maker reference	0164045

WASHER (4,2X7,6X0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404

	P2R reference	67286
	Maker reference	583575

STOP LAMP SWITCH "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, BEVERLY, 50 TYPHOON, NRG, 125-250-400 X8, X9, 50-125 FLY, VESPA LX, 125-250-300 VESPA GTS/GILERA 125-250-300 NEXUS -583575

	P2R reference	68493
	Maker reference	709099

709099 - VIS

	P2R reference	63841
	Maker reference	0069765

006976 - RONDELLE S00697600

	P2R reference	73017
	Maker reference	CM084601

PARKING BRAKE CALIPER "PIAGGIO GENUINE PART" 125-300-400-500 MP3/GILERA 500 FUOCO -CM084601

	P2R reference	68098
	Maker reference	649830

REAR BRAKE PADS -PARKING BRAKE "PIAGGIO GENUINE PART" APRILIA 850 SRV AR/GILERA 800 GP MP3 400-500, YOURBAN 125-300 (PAIR) -649830

	P2R reference	68052
	Maker reference	648476

PARKING BRAKE PADS - "PIAGGIO GENUINE PART" 125-250-400 MP3 2007>, 300-500 MP3 2010>/GILERA 500 FUOCO 2007> -648476

	P2R reference	63841
	Maker reference	0069765

006976 - RONDELLE S00697600

	P2R reference	65638
	Maker reference	0310875

031087 - ECROU S03108700

	P2R reference	72723
	Maker reference	434541

B016777 - VIS

	P2R reference	72723
	Maker reference	B016777

B016777 - VIS

	P2R reference	86964
	Maker reference	649502

649502 - COLLIER

	P2R reference	63841
	Maker reference	0069765

006976 - RONDELLE S00697600

	P2R reference	65638
	Maker reference	0310875

031087 - ECROU S03108700

	P2R reference	86964
	Maker reference	649502

649502 - COLLIER

	P2R reference	66335
	Maker reference	319165

SCREW - MULTI PURPOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -319165

	P2R reference	65422
	Maker reference	0166045

016604 - RONDELLE S01660400

	P2R reference	86750
	Maker reference	647825

REAR BRAKE CALIPER BRACKET "PIAGGIO GENUINE PART" 350-400-500 MP3, 400 X-EVO, X8 -647825-

	P2R reference	68067
	Maker reference	649378

649378 - COLLIER

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

	P2R reference	72723
	Maker reference	B016777

B016777 - VIS

	P2R reference	72723
	Maker reference	434541

B016777 - VIS

	P2R reference	72723
	Maker reference	B016777

B016777 - VIS

	P2R reference	72723
	Maker reference	434541

B016777 - VIS

	P2R reference	65614
	Maker reference	0300765

030076 - BOULON

	P2R reference	82450
	Maker reference	598833

598833 - RONDELLE

	P2R reference	86887
	Maker reference	648932

648932 - CANALISATEUR
