Vehicle Exploded View - PIAGGIO MP3 400 ie 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

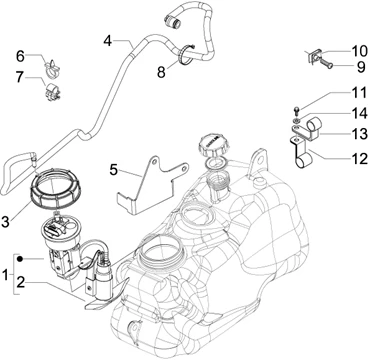

Châssis - parties plastiques - carrosseries : 02.53 INSTALATION DE L'ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/21/MP3_400_ie_2007-2008_02.53.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/9/3/2/img/85932.jpg)
1 |
FUEL PUMP "PIAGGIO GENUINE PART" 300-400-500 MP3 -640315 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/7/4/6/img/85746.jpg)
2 |
FUEL PUMP FILTER"PIAGGIO GENUINE PART" 300-400-500 MP3, 400 X8, 400 X-EVO -639455 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/3/img/67133.jpg)
3 |
576546 - ECROU POMPE More informationQuantity required : 1 |
||||||
4 |
624021 - TUYAU POUR CARBURATEUR More informationQuantity required : 1 |
||||||
|
5 |
577662 - ETRIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/0/img/72910.jpg)
6 |
CM006910 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
7 |
CM013203 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
8 |
257134 - COLLIER More informationQuantity required : 1 |
||||||
|
9 |
018509 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
11 |
B016777 - VIS More informationQuantity required : 1 |
||||||
|
11 |
B016777 - VIS More informationQuantity required : 1 |
||||||
|
12 |
598795 - COLLIER More informationQuantity required : 1 |
||||||
|
13 |
652815 - COLLIER More informationQuantity required : 1 |
||||||
|
14 |
ECROU |
