Vehicle Exploded View - PIAGGIO MP3 400 ie 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

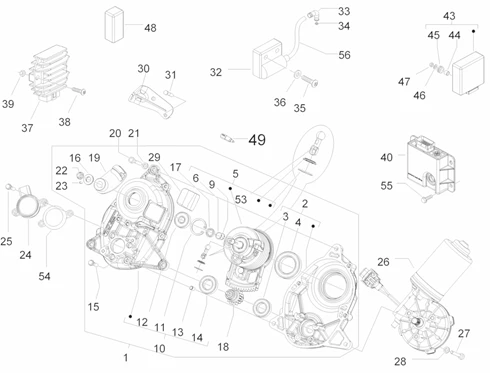

Installation électrique : 06.06 RÉGULATEURS DE TENSION - CENTRALES ELECTRONIQUES - BOBINE H.T.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/21/MP3_400_ie_2007-2008_06.06.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/1/8/3/img/90183.jpg)
1 |
ANTI-ROLLING DEVICE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 - 667185 More informationQuantity required : 1 |
||||||
2 |
846939 - BOITE DISP.ANTIROLLIO More informationQuantity required : 1 |
||||||
|
3 |
|
||||||
|
4 |
846977 - ROULEMENT More informationQuantity required : 1 |
||||||
|
5 |
648641 - GR.RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/2/img/63812.jpg)
6 |
006412 - CIRCLIPS S00641200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/7/7/7/img/109777.jpg)
9 |
006414 - CIRCLIPS S00641400 More informationQuantity required : 1 |
||||||
|
10 |
846942 - COUVERCLE DISP.ANTIROLLIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/2/img/63822.jpg)
11 |
006632 - ANNEAU ELAST. S00663200 More informationQuantity required : 1 |
||||||
|
12 |
843701 - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
13 |
CENTERING PIN (7,5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -277916 More informationQuantity required : 2 |
||||||
|
14 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
15 |
SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792 More informationQuantity required : 4 |
||||||
|
16 |
646516 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
17 |
846834 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
18 |
846980 - AXE PIGNON More informationQuantity required : 1 |
||||||
|
19 |
648957 - LEVIER More informationQuantity required : 1 |
||||||
|
19 |
649402 - LEVIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/3/2/9/img/78329.jpg)
20 |
319538 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
21 |
006976 - RONDELLE S00697600 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/5/img/66225.jpg)
22 |
NUT - FOR VARIATOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -289519 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
23 |
WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -000267 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/2/7/7/img/76277.jpg)
24 |
SENSOR ROTARY REPLACEMENT KIT "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -1R000114 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
25 |
018639 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
25 |
031091 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/6/0/5/img/81605.jpg)
26 |
ANTI-ROLLING DEVICE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -58159R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/5/img/66605.jpg)
27 |
481032 - VIS DE FILTRE FX More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
28 |
006966 - RONDELLE S00696600 More informationQuantity required : 3 |
||||||
|
29 |
647190 - BOUCHON More informationQuantity required : 1 |
||||||
|
30 |
649025 - PLAQUE More informationQuantity required : 1 |
||||||
|
31 |
018639 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/7/img/67207.jpg)
32 |
IGNITION COIL "PIAGGIO GENUINE PART" 125 VESPA GTS, VESPA LX, 300 VESPA GTS, 250-400 MP3, X8, X-EVO, 500 X-9,GILERA 125-300 SR-MAX, 500 NEXUS/APRILIA 125-250-300-400-500 ATLANTIC -58120R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/6/img/66266.jpg)
33 |
SPARK PLUG CAP "PIAGGIO GENUINE PART"COMMON TO ALL THE MAXISCOOTER RANGE -293845 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/1/6/img/67916.jpg)
34 |
641219 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/0/img/65640.jpg)
35 |
031089 - BOULON S03108900 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
36 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/2/3/img/67823.jpg)
37 |
VOLTAGE REGULATOR-"PIAGGIO GENUINE PART" 250-300-400-500 MP3, BEVERLY, 125-250-300 VESPA GTS, 250-400 X-EVO, X8/GILERA 125-250-300-500 NEXUS/APRILIA 250-300-400-500 ATLANTIC, SCARABEO -639110 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
38 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
39 |
241936 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/9/5/2/img/85952.jpg)
40 |
ELECTRONIC PARKING DEVICE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO -640439 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/1/4/8/img/86148.jpg)
43 |
ELECTRO ACTUATOR CONTROL UNIT - OPENING SEAT "PIAGGIO GENUINE PART" 125-250-400 X-EVO, X8, MP3/GILERA 500 NEXUS, FUOCO, 800 GP -641288- More informationQuantity required : 1 |
||||||
|
44 |
217164 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/3/2/img/65932.jpg)
45 |
217163 - SILENBLOC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/8/img/65428.jpg)
46 |
WASHER (5,2X18X1,5) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -016686 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/4/img/65984.jpg)
47 |
241937 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/7/1/img/67871.jpg)
48 |
FLASHER UNIT "PIAGGIO GENUINE PART" 125-250-400 X-EVO, 125-250-300-400-500 MP3, 125-350-500 X10, 250-500 BEVERLY/GILERA 500 FUOCO -1D0013915 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/8/7/9/img/85879.jpg)
49 |
END OF THE STROKE SWITCH - SUSPENSION BLOCKING "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -640063 More informationQuantity required : 1 |
||||||
|
53 |
647728 - TIRANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/4/7/img/86947.jpg)
54 |
649367 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
55 |
B016426 - VIS TEF M6X14 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
56 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -080341 More informationQuantity required : 1 |
