Vehicle Exploded View - PIAGGIO MP3 400 ie 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

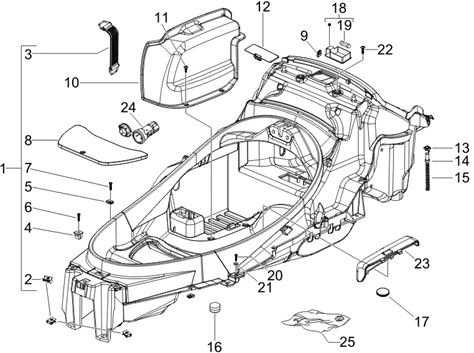

Châssis - parties plastiques - carrosseries : 02.34 LOGEMENT CASQUE - DESSOUS DE SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/21/MP3_400_ie_2007-2008_02.34.PNG)
1 |
655799 - PORTE-CASQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
2 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/7/img/65677.jpg)
3 |
090854 - SANGLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
4 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/0/1/img/67901.jpg)
6 |
640939 - VIS More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/0/img/96280.jpg)
7 |
SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 X16) -CM178606 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/9/0/8/img/84908.jpg)
8 |
INJECTION UNIT ACCESS COVER "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X-EVO, X8 -623599- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/3/9/img/65739.jpg)
9 |
140435 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/4/3/6/img/85436.jpg)
10 |
BATTERY COVER "PIAGGIO GENUINE PART" 400-500 MP3 -624862- More informationQuantity required : 1 |
||||||
|
11 |
SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 X16) -CM178606 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/9/5/8/img/80958.jpg)
12 |
TYPE TESTING TRAPDOOR "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTER -576793 More informationQuantity required : 1 |
||||||
|
13 |
621098 - SIEGE PIVOT BOUTON More informationQuantity required : 1 |
||||||
|
14 |
621097 - PIVOT BOUTON More informationQuantity required : 1 |
||||||
|
15 |
621099 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/6/9/9/img/80699.jpg)
16 |
575860 - BOUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/4/6/img/66646.jpg)
17 |
UPPER PLATE FIXING BUSH - ZIP "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER 50 CC -483859 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/1/img/66261.jpg)
18 |
293154 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/0/img/65660.jpg)
19 |
LIGHT BULB 12V5W BA15S TRUNK INTERIOR LIGHT "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER RANGE -071633 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
20 |
SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/6/img/66296.jpg)
21 |
297029 - RONDELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
22 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 2 |
||||||
|
23 |
623796 - BOITE A OUTILS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/7/5/img/66275.jpg)
24 |
294770 - PRISE B T More informationQuantity required : 1 |
||||||
|
25 |
648027 - TROUSSE OUTILS More informationQuantity required : 1 |
