Vehicle Exploded View - PIAGGIO MP3 400 ie 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

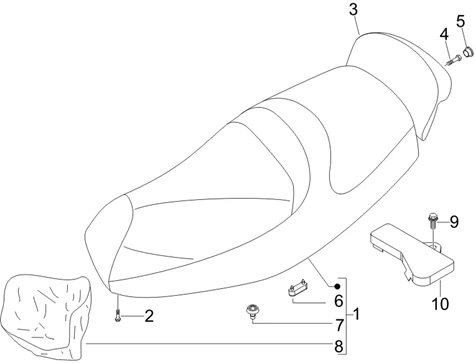

Châssis - parties plastiques - carrosseries : 02.39 SELLE/SIEGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/21/MP3_400_ie_2007-2008_02.39.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/5/0/5/img/91505.jpg)
1 |
SADDLE- "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 BLACK -67386800C1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
2 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 3 |
||||||
|
2 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 3 |
||||||
3 |
62324400EE - SIEGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/5/5/img/65955.jpg)
4 |
227983 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/5/5/img/68655.jpg)
5 |
827173 - BOUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/2/img/66292.jpg)
6 |
296456 - TAMPON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/5/7/img/67157.jpg)
7 |
SADDLE PAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -577492 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/5/9/img/67659.jpg)
8 |
SADDLE COVER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, BEVERLY, 125-250-300 VESPA GTS, 125-250-400 X8/GILERA GP 800, 500 FUOCO/APRILIA 850 SRV -621498 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
9 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498 More informationQuantity required : 1 |
||||||
|
10 |
624965 - COUVERCLE CABLES More informationQuantity required : 1 |
