Vehicle Exploded View - PIAGGIO MP3 400 ie 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

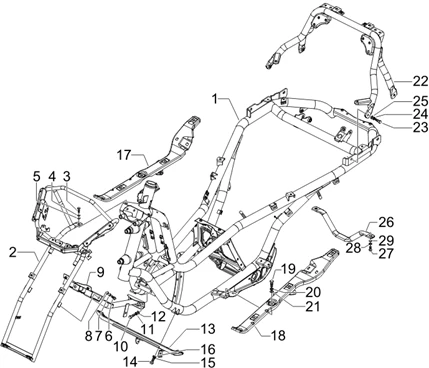

Châssis - parties plastiques - carrosseries : 02.01 CHÂSSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/21/MP3_400_ie_2007-2008_02.01.PNG)
1 |
FRAME "PIAGGIO GENUINE PART" 400-500 PM3 (CAUTION: MUST BE FITTED WITH STEERING TUBE 667658 + BEARING 650075) -6742945- More informationQuantity required : 1 |
||||||
|
2 |
FRONT SUB. CHASSIS "PIAGGIO GENUINE PART" 125-250-400 MP3 2006>2008 -6537066- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
3 |
031119 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
4 |
012540 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/3/img/63773.jpg)
5 |
003038 - RONDELLA PIANA 8,4X18X2 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/7/img/65637.jpg)
6 |
031086 - VIS S03108600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
7 |
012533 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
8 |
003056 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/6/4/5/img/84645.jpg)
9 |
FRONT SUB-CHASSIS STRUT "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 2007>/GILERA 500 FUOCO 2007> -6227795 More informationQuantity required : 1 |
||||||
|
10 |
031119 - BOULON More informationQuantity required : 2 |
||||||
|
11 |
012540 - RONDELLE More informationQuantity required : 2 |
||||||
|
12 |
003038 - RONDELLA PIANA 8,4X18X2 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/8/3/5/img/84835.jpg)
13 |
FRONT PIPES CROSS PIN "PIAGGIO GENUINE PART" PIAGGIO 125-250-300-400-500 MP3 -6234865 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/9/img/65649.jpg)
14 |
031122 - BOULON FIX BRAS More informationQuantity required : 2 |
||||||
|
15 |
012540 - RONDELLE More informationQuantity required : 2 |
||||||
|
16 |
003038 - RONDELLA PIANA 8,4X18X2 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/9/5/img/158295.jpg)
17 |
RIGHT FOOTREST SUPPORT CROSS PIN "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -1B0063505 More informationQuantity required : 1 |
||||||
|
18 |
653048 - TRAVERSE GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
19 |
031088 - VIS S03108800 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
20 |
016406 - RONDELLE S01640600 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
21 |
013880 - RONDELLE More informationQuantity required : 8 |
||||||
|
22 |
6232175 - CHASSIS ARR. More informationQuantity required : 1 |
||||||
|
23 |
031119 - BOULON More informationQuantity required : 4 |
||||||
|
24 |
012540 - RONDELLE More informationQuantity required : 4 |
||||||
|
25 |
003038 - RONDELLA PIANA 8,4X18X2 More informationQuantity required : 4 |
||||||
|
26 |
653294 - TUYAU More informationQuantity required : 1 |
||||||
|
27 |
031117 - BOULON S03111700 More informationQuantity required : 2 |
||||||
|
28 |
012540 - RONDELLE More informationQuantity required : 2 |
||||||
|
29 |
003038 - RONDELLA PIANA 8,4X18X2 More informationQuantity required : 2 |
