Vehicle Exploded View - APRILIA ATLANTIC 500 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

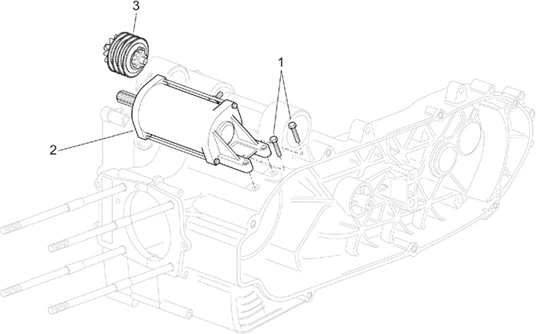

Moteur : 29.54 DÉMARREUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/760/Atlantic_500_2001-2004_29.54.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
1 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 2 |
||||||
|
1 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/3/4/img/68634.jpg)
2 |
STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 400-500-530 MP3, BEVERLY, 400 X-EVO, 500 X10/GILERA 500 NEXUS, FUOCO/APRILIA 400-500 ATLANTIC-82699R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/3/5/img/70635.jpg)
3 |
SPROCKET DE STARTER MOTOR OEM PIAGGIO 400-500-530 MP3, BEVERLY, 400 X-EVO, 500 X9, X10/GILERA 500 FUOCO, NEXUS, 800 GP/APRILIA 400-500 SCARABEO, ATLANTIC-876835 More informationQuantity required : 1 |
