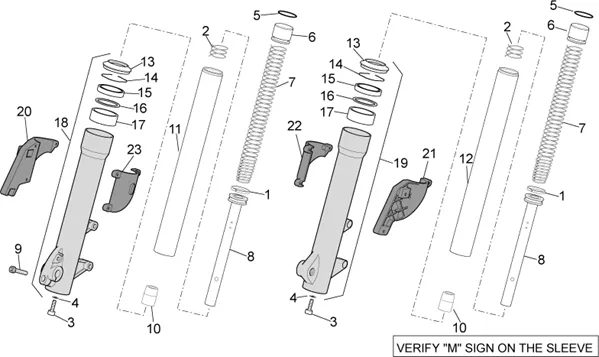

Chassis : 28.05 FOURCHE MARZOCCHI TIGES,FOURREAUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/760/Atlantic_500_2001-2004_28.05.PNG)
1 |
AP8123650-PISTON RING BUSH More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/2/2/img/72022.jpg)
2 |
CONTRE FORK SPRING OEM PIAGGIO MOTO-GUZZI 850-1200 BREVA, 750 NEVADA, 850-1200 NORGE/APRILIA 650 PEGASO, 1000 CAPONORD, 500 ATLANTIC-AP8163076 More informationQuantity required : 2 |
||||||
|
3 |
AP8123216-SCREW More informationQuantity required : 2 |
||||||
|
4 |
GASKET/WASHER ETANCHEITE VIDANGE DE FORK OEM PIAGGIO COMMON A LA RANGE-AP8123206 More informationQuantity required : 2 |
||||||
|
5 |
AP8163150-BUSH OF BUTEE More informationQuantity required : 2 |
||||||
|
6 |
AP8163151 - BOUCHON More informationQuantity required : 2 |
||||||
|
7 |
AP8163152-SPRING More informationQuantity required : 2 |
||||||
|
8 |
AP8163153 - AMORTISSEUR More informationQuantity required : 2 |
||||||
|
9 |
AP8123920 - VIS; More informationQuantity required : 1 |
||||||
|
10 |
AP8123655-BUFFER DE FOND More informationQuantity required : 2 |
||||||
|
11 |
AP8163154 - TIGE DROITE More informationQuantity required : 1 |
||||||
|
12 |
AP8163155-ROD LEFT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/8/6/img/67386.jpg)
13 |
PROTECTOR POUSSIERE FORK OEM PIAGGIO APRILIA 50-125-250 RS/DERBI SENDA (MARZOCCHI) 2003 > 2011/MOTO-GUZZI V7, BREVA NEVADA-599502 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/8/7/img/67387.jpg)
14 |
599503 - CIRCLIPS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/8/5/img/67385.jpg)
15 |
OIL SEAL (40X52. 2X10/10. 5) DE FORK MARZOCCHI OEM PIAGGIO 500 X9/APRILIA 50-125-250 RS, 500 ATLANTIC, 650 PEGASO/GILERA 500 NEXUS/MOTO-GUZZI 750 BREVA, NEVADA, V7-599501 More informationQuantity required : 2 |
||||||
|
16 |
Rondelle bouche guide; |
||||||
|
17 |
599505 - MOYEU More informationQuantity required : 2 |
||||||
|
18 |
AP8163156 - FOURREAU D More informationQuantity required : 1 |
||||||
|
19 |
AP8163157 - FOURREAU G More informationQuantity required : 1 |
||||||
|
20 |
AP8134819 - SUPPORT GARDE-BOUE AV.DROITE; More informationQuantity required : 1 |
||||||
|
21 |
AP8134800 - SUPPORT GARDE-BOUE AV.GAUCHE; More informationQuantity required : 1 |
||||||
|
22 |
AP8121532 - SUPPORT GARDE-BOUE AV.GAUCHE More informationQuantity required : 1 |
||||||
|
23 |
AP8121564 - SUPPORT GARDE-BOUE AV.DROITE More informationQuantity required : 1 |
