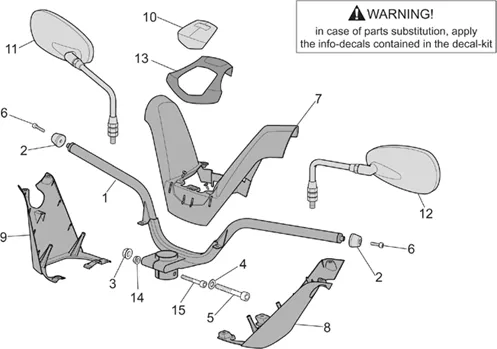

Chassis : 28.18 GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/760/Atlantic_500_2001-2004_28.18.PNG)
1 |
AP8118589-HANDLEBAR More informationQuantity required : 1 |
||||||
|
2 |
AP8104384-MASSE ANTIVIBRATILE HANDLEBAR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
3 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
4 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/2/img/71822.jpg)
5 |
SCREW BTR (10X70) OEM PIAGGIO COMMON A LA RANGE-AP8150088 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
6 |
SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8150165 More informationQuantity required : 2 |
||||||
|
7 |
AP8149444 - CACHE-GUIDON SUPERIEUR; More informationQuantity required : 1 |
||||||
|
8 |
Cache-guidon inférieur gche; |
||||||
|
9 |
AP8149443 - CACHE-GUIDON INFERIEUR D.; More informationQuantity required : 1 |
||||||
|
10 |
AP8158432 - COUVERCLE; More informationQuantity required : 1 |
||||||
|
10 |
AP8158539 - COUVERCLE; More informationQuantity required : 1 |
||||||
|
11 |
AP8104453 - MIROIR RETROVISEUR DTE More informationQuantity required : 1 |
||||||
|
12 |
AP8104454-MIROIR MIRROR GCHE More informationQuantity required : 1 |
||||||
|
13 |
AP8158430 - COUVERCLE GUIDON PEINT GRIS; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/3/img/71883.jpg)
14 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8150431 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/9/img/71849.jpg)
15 |
SCREW BTR (8X50) OEM PIAGGIO COMMON A LA RANGE-AP8150277 More informationQuantity required : 1 |
